The 2 μm In-Line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instrumentations where high polarization extinction ratio is required.
The 2 μm Polarization Insensitive Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. This optical isolator is characterized with high performance and reliability. It is designed specially for 2 μm laser system.
The 1064 nm In-Line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instruments where high polarization extinction ratio is required.
The Singlemode Broadband Coupler offers very low insertion loss, low polarization dependent loss and excellent environmental stability. This coupler series offers accurate coupling ratios from 1/99 to 50/50 and is available with very good uniformity in a wide wavelength range. These components find extensive applications to perform power splitting and mornitoring functions in all kinds of optical communication systems.
The Special Wavelength Coupler offers very low insertion loss, low polarization dependent loss and excellent environmental stability. Accurate coupling ratios from 0.01/99.99 to 50/50 are available with very good uniformity in the operating wavelength range. These components find extensive applications to perform power splitting and monitoring functions in all kinds of optical communication systems.
The Polarization Maintaining Fused Coupler offers very low insertion loss, high polarization extinction ratio and excellent environmental stability. Accurate coupling ratios from 0.01/99.99 to 50/50 are available with very good uniformity at center wavelength. These components find extensive applications to perform power splitting and mornitoring functions in all kinds of optical communication systems.
The Singlemode Coupler offers very low insertion loss and excellent environmental stability. Accurate coupling ratios from 1/99 to 50/50 are available with very good uniformity in the operating wavelength range. These components find extensive applications to perform power splitting and monitoring functions in all kinds of optical communication systems.
The Ultra Low Ratio Tap Coupler splits a very small amount of light from a signal path to a tap port. Low tap ratios such as 0.1%, 0.01% or 0.001% enable the monitoring photodetector to operate without damage or saturation. It is suitable for very high optical power, its main application is in the monitoring of optical sources such as fiber lasers.
The 2 μm Polarization Maintaining Tap Coupler/Splitter is manufactured by using advanced technology to allow the input signal to be split at various ratios with high extinction ratio.

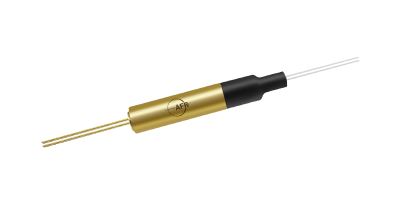

The 2 μm Fiber Pigtailed Photodiode is a coaxial package photoelectrical component. It features high responsivity, low dark current and good temperature performance over a wide wavelength range.
The Polarization Maintaining Tap Coupler is manufactured by using advanced technology to allow the input signal to be split at various ratios with high extinction ratio.
The PMFCM series is manufactured by using advanced technology to allow the input signal to be split into multiple channels at a given splitting ratio with high extinction ratio, low excess loss, good uniformity, low WDL and low TDL. It can be widely used in fiber sensors, amplifiers, various laser applications, etc.
The ClearCut Fiber Bragg Grating Reflectors are components designed for ultrafast lasers without extra dispersion. With AFR's ClearCut design and special process, the FBG have ultra low temperature slope and outstanding reliability. Custom configurations are available.
The ClearCut pulse stretchers are chirped fiber bragg gratings for ultrafast fiber lasers. With AFR's ClearCut design and special process, the devices could provide large dispersion for pulse stretching and performance with outstanding reliability. Custom configurations are available.
The High Power N × 1 Laser Combiner is designed for combining the power from N units of kW class fiber laser with high efficiency. The laser combiner is available for different fiber types.
The High Power Pump & Signal Combiner enables highly efficient combining of the powers from up to 6 multimode pump diodes and a signal laser into a double cladding output fiber. The pump and signal combiner can handle more than 1 kW combined power. Available for different fiber types.
The Mode Field Adapter can effectively expand the mode field of single-mode fiber or LMA fiber, match the LP01 mode field of larger LMA fiber. Available for different fiber types.
AFR's Integrated Polarization Maintaining Tap Power Detector (PMTAPD) integrates the functionality of a optical coupler and a photodiode for optical network's power detection. It applys for channel power monitoring in DWDM system, in-line optical network switchingprotection monitoring(OLP), re-configurable optical add/drop multiplexer(OADM), and gain/attenuation monitoring in EDFA, etc.
The Cladding Power Stripper (CPS) is designed for efficiently stripping off residual cladding power, ASE and escaped core modes of double cladding fiber while preserving minimal degradation to signal power and beam quality.
Mini Type Manual Variable Optical Attenuator (MVOA) operates by manually moving a shading element into optical beam. The shading element can be adjusted to get any attenuation value in a range. This MVOA features low insertion loss, good resolution, integrating high stability, good reliability and applies for pre-emphasis attenuation, transmitter power control, in-line power equalization and amplifier power control, etc.
The Multimode Fiber Bandpass Filter is a micro optic device based on environmentally stable thin film filter technology. It is used to block out unwanted noise signals in multimode fiber communication systems. These components are characterized with high isolation, low insertion loss, high return loss, excellent environmental stability and high power handling capability.
The 1064 nm PM Fiber Collimator is a basic element for in-line fiber optic components, such as isolator. It has low insertion loss and high return loss. The unique processing and high quality AR coating enable this PM Fiber collimator to handle high average power.
The Pump Protector is a micro optics device based on environmentally stable thin-film filter technology. It is used to block out unwanted noise signals in EDFAs and fiber laser systems. The components are characterized with high isolation, low insertion loss, high return loss, excellent environmental stability and high power handling capability.
The PM Bandpass Filter is a micro optics device based on environmentally stable thin-film filter technology. It is used to block out unwanted wavelength bands in fiber laser systems. The components are characterized with high isolation, low insertion loss, high extinction ratio, excellent environmental stability and high power handling capability.
The 1064 nm Faraday Mirror is a passive device that provides 90 degree polarization rotation respect to incident light. The FM offers excellent performance including the lowest possible insertion loss and environmental stability. It is used in amplifiers, fiber lasers and fiber instruments to minimize the polarization effect.
