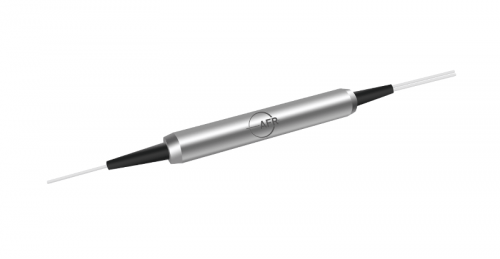

The Special Wavelength Coupler offers very low insertion loss, low polarization dependent loss and excellent environmental stability. Accurate coupling ratios from 0.01/99.99 to 50/50 are available with very good uniformity in the operating wavelength range. These components find extensive applications to perform power splitting and monitoring functions in all kinds of optical communication systems.
Product Detail
|
Key Features |
Applications |
|
Wavelength 445 - 2100 nm Available |
Power Monitoring |
|
Coupling Ratio from 0.01/99.99 to 50/50 Available |
Splitter |
|
Low Excess Loss |
Fixed Attenuation |
|
High Power Handling |
Testing Instruments |
|
High Stability And Reliability |
Specifications
Parameter
Unit
Value
Center Wavelength (λc)
nm
488, 532, 635
780, 830
980, 1064
1700, 2000
Operating Wavelength
nm
λc ± 5
λc ± 10
λc ± 10
λc ± 20
Max. Polarization Dependent Loss
dB
0.2
0.2
0.1
0.2
Max. Excess Loss
dB
0.3
0.3
0.15
0.3
Max. Excess Loss for Each Connector
dB
1.5
0.7
0.5
0.3
Max. Optical Power (Continuous Wave)1
W
4
Thermal Stability
dB/℃
≤ 0.005
Min. Return Loss2
dB
50
Min. Directivity
dB
50
Fiber Type
-
Singlemode Fiber
Operating Temperature
℃
- 40 to + 75
Storage Temperature
℃
- 40 to + 85
Coupling Ratio & Insertion Loss3
Coupling Ratio
%
1/99
2/98
5/95
10/90
20/80
30/70
40/60
50/50
Max. Insertion Loss, λc
dB
22/0.3
18.5/0.35
14.5/0.5
11.5/0.75
8.0/1.5
6.0/2.0
4.8/2.8
3.6/3.6
Coupling Ratio
%
0.1/99.9
0.01/99.99
Insertion Loss, λc
dB
30 ± 3/≤ 0.3
40 ± 4/≤ 0.3
1The Optical Power is 1 W only for connector added. For visible wavelength, the limit is 50 mW.
2RL is 5 dB lower for connector added.
3Data tested at central wavelength only.
