AFR 980 nm 20 W Optical Isolator for Fiber Laser and Instrumentation Applications

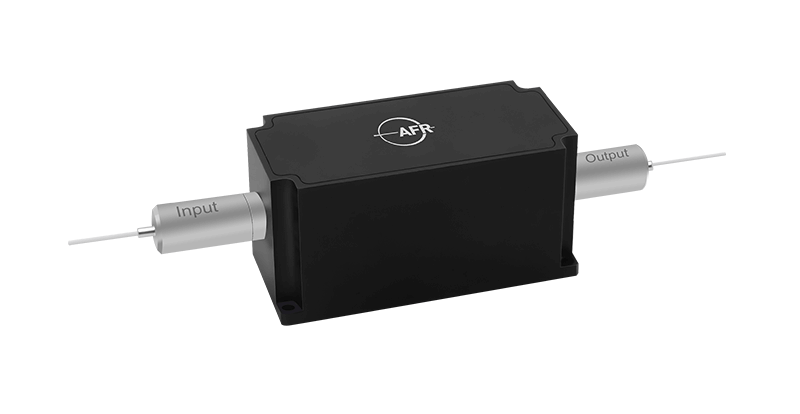

980 nm 20 W Isolator

The High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. This fiber isolator is ideal for fiber lasers and instrumentation applications.

Inquiry now Download

Product Detail

Key Features	Applications
Low Insertion Loss	Fiber Lasers
High Isolation	Fiber Optic Instruments

Specifications

Parameter	Unit	Value
Center Wavelength (λc)	nm	980
Operating Wavelength Range	nm	λc ± 10
Typ. Peak Isolation	dB	30
Min. Isolation, λc, @ All Polarization States, 23 ℃	dB	25
Typ. Insertion Loss, 23 ℃	dB	0.8
Max. Insertion Loss, 23 ℃	dB	1
Min. Return Loss (Input/Output)	dB	45/45
Max. Polarization Dependent Loss	dB	0.2
Max. Average Optical Power	W	20
Max. Peak Power (Pulse Width, 10 ns)	kW	10
Max. Tensile Load	N	5
Fiber Type	-	HI1060
Operating Temperature	℃	+ 10 to + 50
Storage Temperature	℃	0 to + 60
