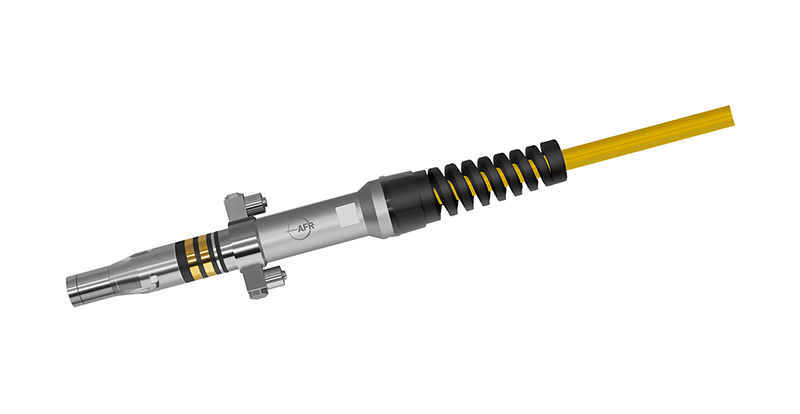

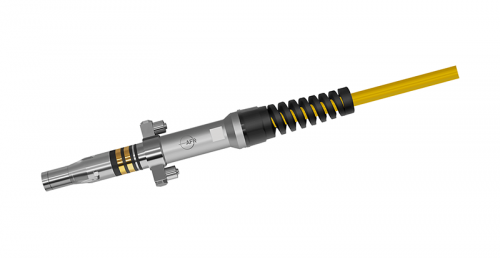

Product Detail
|
Key Features |
Applications |
|
Low Transmission Loss |
Fiber Laser |
|
High Power Handling |
Fiber Coupling |
|
High Reflection Power Endurance |
|
|
Indirect Water Cooling |
|
|
Safety Interlock |
|
Specifications |
||
|
Parameter |
Unit |
Value |
|
Operation Wavelength |
nm |
945 ± 50 or 1080 ± 30 |
|
Fiber Core Diameter |
μm |
20 - 400 |
|
Numerical Aperture (NA) |
- |
≤ 0.22 |
|
Max. Transmission Loss of Fiber Core |
% |
2 |
|
Max. Power Handling |
W |
3000 |
|
Max. Stripping Cladding Power |
W |
500 |
|
Max. Z-Position Tolerance |
μm |
± 50 |
|
Max. Angular Deviation |
mrad |
20 |
|
Cooling Water Requirements |
|
|
|
Flow Rate |
L/min |
1.5 - 3.0 |
|
Max. Water Pressure |
MPa |
0.8 |
|
Water Temperature |
°C |
10 - 45 |
|
Water Hose Diameter |
mm |
ID/OD = 4/6 |
|
Others |
|
|
|
Mechanical Interface |
- |
Compatible with the Standard QBH Interface |
|
Type of Cable Gland |
- |
Nylon |
|
Min. Fiber Tensile Load |
N |
5 |
|
Operating Temperature |
°C |
+ 5 to + 50 |
|
Storage Temperature |
°C |
- 20 to + 70 |
|
Safety Interlock |
|
|
|
Interlock Circuit Resistance |
3.3 kΩ ± 5% + 2 Ω/m fiber |
|
|
Thermo-Switch Limit |
|
70 °C ± 5 °C, Reset temp < 30 °C |
|
Max. Working Voltage |
- |
33 V |
