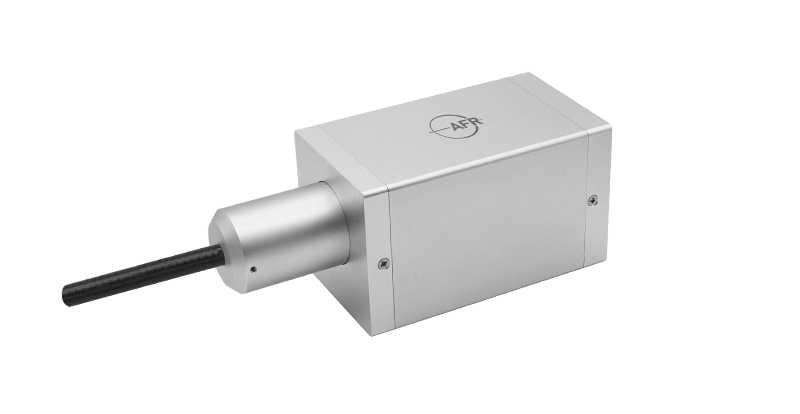

Product Detail
|
Key Features |
Applications |
|
High Power Handling |
Fiber Lasers |
|
Low Insertion Loss |
Fiber Optic Instruments |
Specifications
|
Optical Parameter |
Unit |
Values |
|
Operating Wavelength (λc) |
nm |
1064 ± 15 |
|
Max. Insertion Loss at 23 ℃, λc |
dB |
0.4 |
|
Typ. Peak Isolation |
dB |
40 |
|
Min. Isolation at 28 ℃ |
dB |
30 |
|
Min. Return Loss |
dB |
50 |
|
Nominal Output Beam Diameter (1/e2 @ 500 W)1 |
mm |
7.0 ± 0.5 @ M2 = 1.5 |
|
Beam Circularity @ Focal Spot1 |
% |
> 90 |
|
M2 Degradation |
% |
< 10 |
|
640 nm Transmission |
% |
> 20 |
|
Max. Focal Shift of Thermal Lens1 |
ZR |
≤ 0.5 |
|
Typ. Focal Shift of Thermal Lens1 |
ZR |
≤ 0.2 |
|
Max. Average Optical Power |
W |
500 |
|
Max. Peak Power for ns Pulse |
kW |
50 |
|
Max. Average Optical Power from Cladding |
W |
5 |
|
Max. Tensile Load |
N |
5 |
|
Beam Offset |
mm |
< 0.7 |
|
Pointing Error |
mrad |
< 2.5 |
|
Fiber Type |
- |
Specified by Ordering Info |
|
Cooling |
- |
Water |
|
Water Quality |
- |
Purified or Distilled Water |
|
Flow Rate |
L / min |
1.5 - 2.5 |
|
Water Pressure |
Mpa |
≤ 0.3 |
|
Water Temperature |
- |
≥ 5 °C Above Dew Point Temperature |
|
Water PH Value |
- |
6.2 - 7.9 |
|
Operating Temperature |
℃ |
+ 10 to + 50 |
|
Storage Temperature |
℃ |
- 10 to + 60 |
