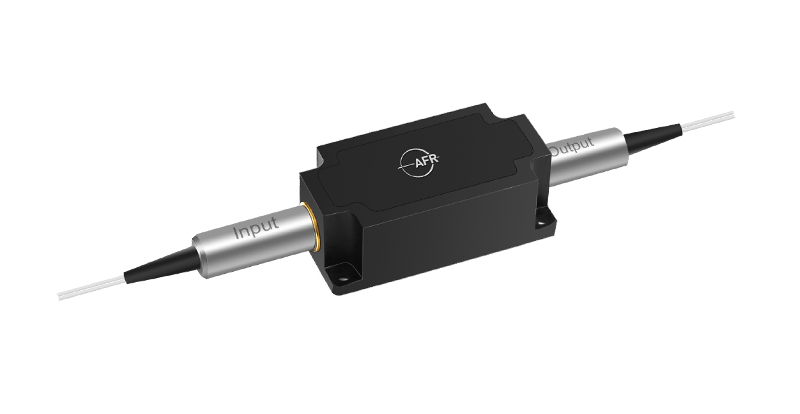

The 1064 nm High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The High Power Polarization Insensitive Isolator is ideal for fiber lasers and instrumentation applications.
Product Detail
|
Key Features |
Applications |
|
Low Insertion Loss |
Fiber Lasers |
|
High Isolation |
Fiber Optic Instruments |
|
High Return Loss |
|
Specifications
Parameter
Unit
Value
Center Wavelength (λc)
nm
1064
Typ. Peak Isolation
dB
35
Min. Isolation, λc, @ All Polarization States, 23 ℃
dB
28
Typ. Insertion Loss, 23 ℃
dB
1.7
Max. Insertion Loss and Input Power @ 300 mW, 23 ℃
dB
2.0
Max. Insertion Loss and Input Power @ 1 W, 23 ℃
dB
2.5
Max. Insertion Loss and Input Power @ 2 W, 23 ℃
dB
3.0
Min. Return Loss (Input/Output)
dB
50/50
Max. Polarization Dependent Loss
dB
0.2
Max. Average Optical Power
W
2
Max. Peak Power (Pulse Width, 10 ns)
kW
10
Max. Tensile Load
N
5
Fiber Type
-
HI1060
Operating Temperature
℃
+ 10 to + 50
Storage Temperature
℃
0 to + 60
1IL is 0.5 dB higher, and RL is 5 dB lower for each connector added.
2The optical power handling capability will be max 1 W when the isolator is terminated with connectors.
