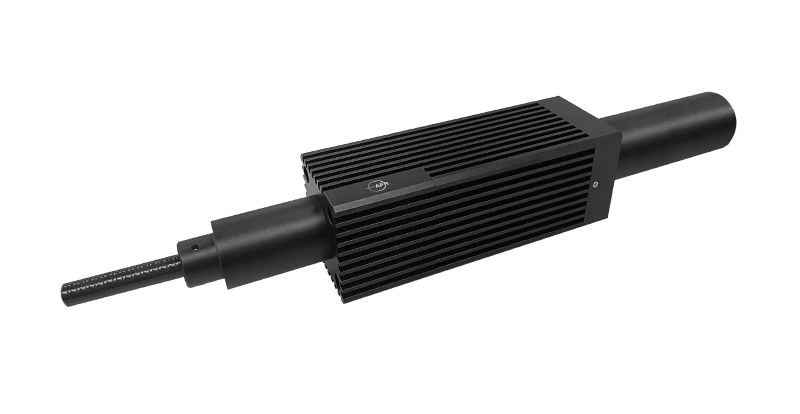

SteadiBeam® 1064 nm 200 W Isolator

AFR's SteadiBeam® is the best Isolator designed for high power pulse fiber lasers.
  • Product Detail

AFR's SteadiBeam® is the best Isolator designed for high power pulse fiber lasers. Two versions of design are compatible to lasers of 100 W and 200 W, respectively. With multiple patented technologies, the SteadiBeam® delivers unparalleled performance of aberration-free and thermal lensing-free beam quality at any output power level. It also provides high isolation to reflection coming from all spatial angles.

Specifications

Parameter

Unit

Value

Center Wavelength (λc)

nm

1064 ± 15

Max. Insertion Loss at 30  (λc)

dB

0.4

Typ. Peak Isolation

dB

40

Min. All-Angle Isolation at 30

dB

30

Min. All-Angle Isolation at full temperature

dB

20

Min. Return Loss

dB

50

Nominal Output Beam Diameter (1/e²)

mm

6.5 ± 0.5

Beam Circularity

%

> 90

Degradation

%

< 10

Reverse Power Handling

W

10 W Continuous

50 W (3 min max)

Fiber Types

-

specified by ordering info

Operating Temperature

+ 10 to + 50

Storage Temperature (Non-Condensing condition)

- 10 to + 60
