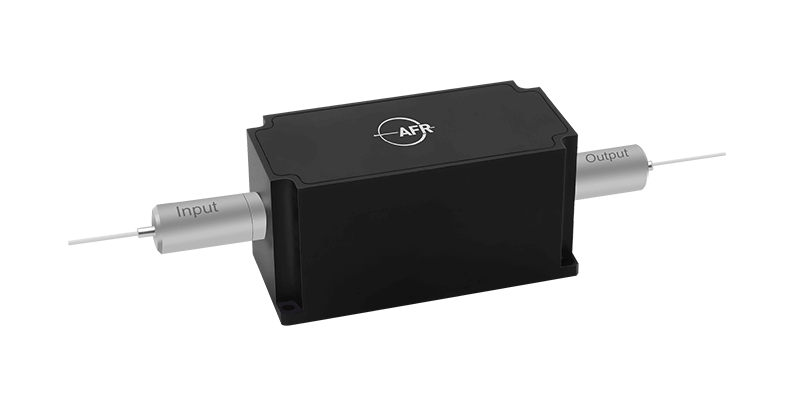

AFR 1030 nm 10/20 W Optical Isolator for Fiber Laser and Instrumentation Applications

1030 nm 10/20 W Isolator

The High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The fiber isolator is ideal for fiber lasers and instrumentation applications.

Inquiry now Download

Product Detail

Key Features	Applications
Low Insertion Loss	Fiber Lasers
High Isolation	Fiber Optic Instruments

Specifications

Parameter	Unit
Type	-	Type A	Type B
Center Wavelength (λc)	nm	1030
Operating Wavelength Range	nm	λc ± 10
Typ. Peak Isolation	dB	30
Min. Isolation, λc, @ All Polarization States, 23 ℃	dB	25
Typ. Insertion Loss, 23 ℃	dB	0.8
Max. Insertion Loss, 23 ℃	dB	1
Max. IL Output to Reflection (MMF), (Output to MMF)	dB	None	1
Min. Return Loss (Input/Output)	dB	50/50
Max. Polarization Dependent Loss	dB	0.2
Max. Average Optical Power	W	10	20
Max. Peak Power (Pulse Width, 10 ns)	kW	10
Max. Tensile Load	N	5
Fiber Type	-	HI1060
MMF Fiber Type	-	None	MMF-105/125
Operating Temperature	℃	+ 10 to + 50
Storage Temperature	℃	0 to + 60

Note: MMF Port is to take out useless light.
