AFR Fiber to Free Space High Power Optical Isolator for Pulse Application

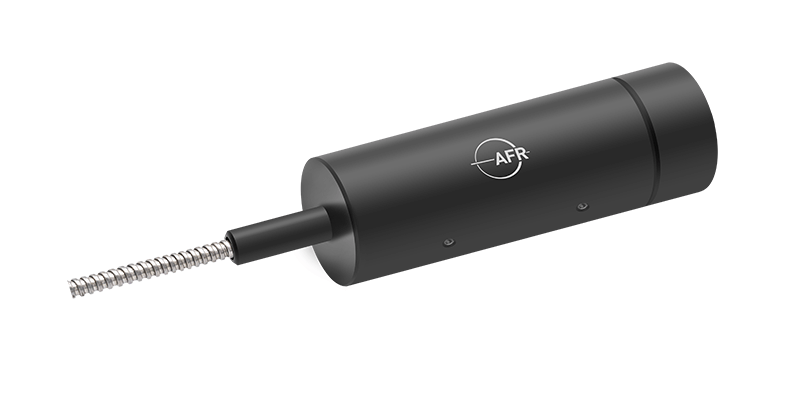

2 μm High Power Fiber to Free Space Isolator

This 2 μm High Power Fiber to Free Space Isolator is characterized with low insertion loss, high isolation high power handling, high return loss, excellent environmental stability and reliability. This optical isolator is ideal for fiber laser and instrumentation applications.

Inquiry now Download

Product Detail

Key Features	Applications
High Power Handling	Fiber Laser
Low Insertion Loss	Fiber Optic Instruments

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	2000
Operating Wavelength Range	nm	λc ± 30
Output Beam Diameter	mm	4.9 ± 0.5
Extinction Ratio (PM Type Only, Both Axes Are Working)	dB	20
Max. Insertion Loss	dB	0.5
Min. Isolation @ λc, 23 ℃	dB	35
Max. Average Optical Power	W	5
Max. Peak Power (Pulse Width, 10 ns)	kW	10
Return Loss	dB	45
Fiber Type	-	SMF-28 or PM 1550 Fiber
Operating Temperature Range	℃	+ 10 to + 60
Storage Temperature	℃	- 40 to + 85
