Product Detail

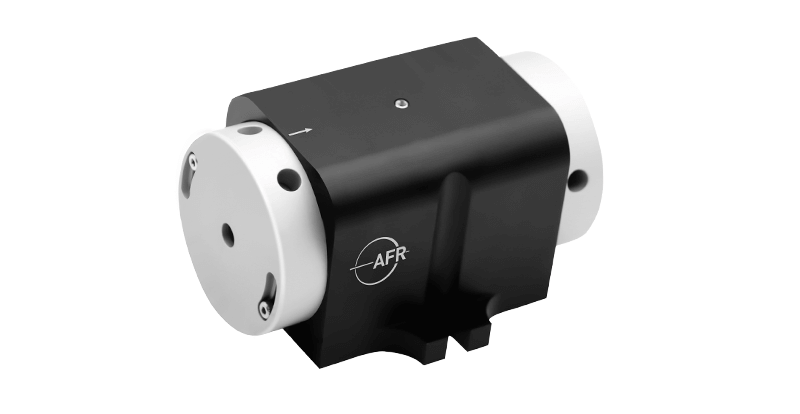

AFR's LaseGuard Isolator Series are designed for guarding the laser from back reflected light. The isolator normally rotate the polarized plane for 45° clockwise in the forward direcition, an λ/2 waveplate is in option if other output polarization is prefered. The high transmission efficiency, high isolation, high power handling ability and large aperture features make it flexible to fit different applications in laser protection.
Specifications |
||
Parameter |
Unit |
Value |
Center Wavelength (λc) |
nm |
1060 or specified |
Peak Transmission (λc, 23 ℃) |
% |
> 95 |
Peak Isolation (λc, 23 ℃) |
dB |
> 35 |
Input Polarization |
- |
specified |
Output Polarization |
- |
specified |
Clear Aperture |
mm |
5 or specified |
Optical Average Power |
W |
100 or specified |
Damage Threshold |
- |
10 J/cm2 @ 10 ns 1 J/cm2 @ 8 ps |
Operating Temperature |
℃ |
+ 10 to + 30 |
Storage temperature |
℃ |
0 to + 60 |
