ClearCut™ High Power Fiber Bragg Grating

low insertion loss fiber bragg gratings for high power fiber lasers
  • Product Detail

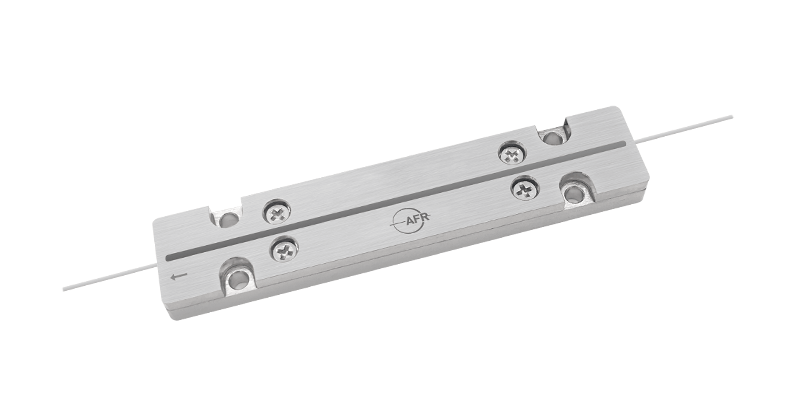

The High Power ClearCut™ Fiber Bragg Grating products are low insertion loss fiber bragg gratings for high power fiber lasers. With AFR's ClearCut designing and packaging, the devices can handle kilowatt level pump power and signal power. Custom configurations available.

Specifications

Parameter

Unit

Value

Center Wavelenggth

nm

1030, 1064, 1070, 1080

Tolerance on Center Wavelength

nm

1.0

Max. Wavelength Mismatch (OC Relative HR)

nm

0.2

High Reflector (HR) / Output Coupler (OC)



 HR          OC

Peak Reflectivity

%

≥99.0      (5.0 - 30.0) ± 2.0

Reflection Bandwidth at 95%

nm

1.5-4.0         /

Reflection Bandwidth at 50%



         /              0.2-2.0

Tolerance on Reflection Bandwidth

nm

 0.1-0.4         0.1-0.2

Min. Side Mode Suppression Ratio

dB

  20               10

Fiber Core/Cladding Dimension



10/125, 14/250, 20/400, 25/400

Min. Core Signal Power Handling



 300,  800, 1500, 2000

Min. Clad Pump Power Handling



 450, 1200, 2000, 2000

Fiber Type



 PM or Non-PM

 Package Dimensions

 mm

60 (L) × 12 (W) × 5 (H)

Cooling Bottom Plate Temperature

 ℃

≤25

Storage Temperature

 ℃

 -40 to +85
