AFR (6+1)×1 High Power Pump & Signal Laser Combiner for High Power Fiber Laser

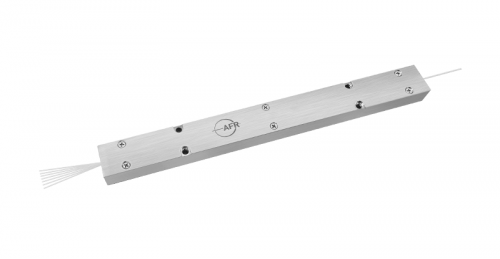

(6+1)×1 High Power Pump & Signal Combiner

The High Power Pump & Signal Combiner enables highly efficient combining of the powers from up to 6 multimode pump diodes and a signal laser into a double cladding output fiber. The pump and signal combiner can handle more than 1 kW combined power. Available for different fiber types.

Inquiry now Download

Product Detail

Key Features	Applications
High Power Handling	kW Class Fiber Laser
High Coupling Efficiency	kW Class Fiber Amplifier
Proprietary Fiber Tapering Technique

Specifications
Parameter	Unit	Value
Product Type	-	(6+1)×1
Pump Wavelength Range	nm	915 - 980
Signal Wavelength Range	nm	1030 - 1080
Fiber Type for Input (Pump Channel)	-	Nufern 220/242, 0.22 NA
Fiber Type for Input (Signal Channel)	-	Nufern LMA-GDF-20/400-M, 0.06/0.46 NA
Fiber Type for Output	-	Nufern LMA-GDF-20/400-M, 0.06/0.46 NA
Max. Input Pump Power	W	6 × 200
Max. Signal Channel Insertion Loss	dB	0.5
Typ. Pump Efficiency	%	99
Min. Pump Efficiency	%	97
Package Dimensions	mm	100 (L) × 15 (W) × 10 (H)
Operating Temperature (Active Cooling Required)	℃	- 5 to + 65
Storage Temperature	℃	- 40 to + 85
