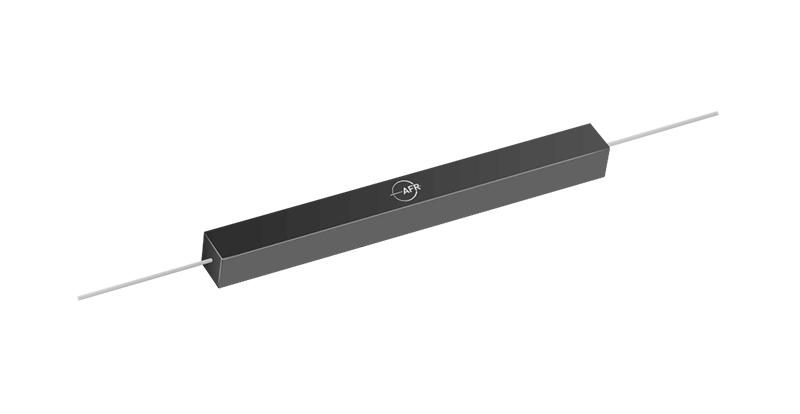

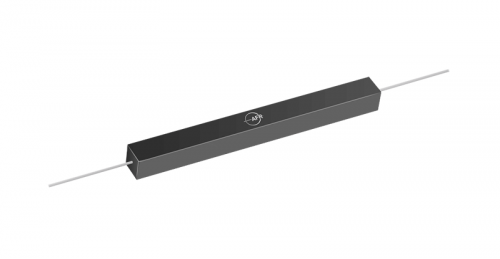

The 2000 nm Mode Field Adapter can effectively expand the mode field of single-mode fiber or LMA fiber, match the LP01 mode field of larger LMA fiber.
Product Detail
The 2000 nm Mode Field Adapter can effectively expand the mode field of single-mode fiber or LMA fiber, match the LP01 mode field of larger LMA fiber. Available for different fiber types.
Features
●High Signal Transfer Efficiency
●Wide Wavelength Range
●Minimum Degradation of Beam Quality
●Custom Configurations Available
Specifications |
|||
Parameter |
Unit |
Value |
|
Product Type |
- |
MFA |
|
Input Fiber |
- |
HI 1060, 6/125 DCF |
|
Output Fiber |
- |
10/125 DCF, 20/130 DCF |
|
Signal Insertion Loss |
dB |
< 0.40 |
|
Power Handling* |
W |
10 |
30 |
Package Dimensions |
mm |
P1: 50 (L) × 5 (W) × 5 (H) |
P2: 70 (L) × 12 (W) × 8 (H) |
Operating Temperature |
℃ |
- 5 to + 65 |
|
Storage Temperature |
℃ |
- 40 to + 85 |
