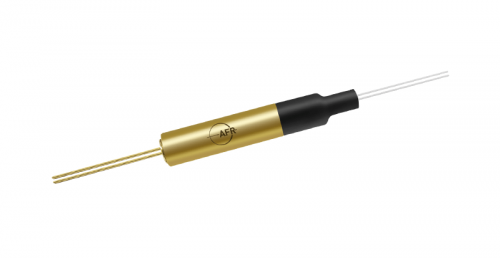

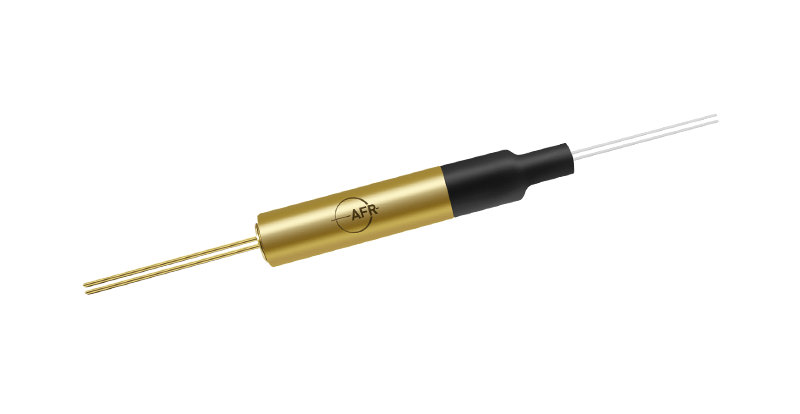

Polarization Maintaining Integrated Tap Power Detector

AFR's Integrated Polarization Maintaining Tap Power Detector (PMTAPD) integrates the functionality of a optical coupler and a photodiode for optical network's power detection. It applys for channel power monitoring in DWDM system, in-line optical network switchingprotection monitoring(OLP), re-configurable optical add/drop multiplexer(OADM), and gain/attenuation monitoring in EDFA, etc.

Inquiry now Download

Product Detail

Key Features	Applications
Low Insertion Loss	EDFA
Low Dark Current	Optical Sensing System
Accurate Tap Ratio

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	1064
Max. Insertion Loss , 5%¹	dB	0.8
Min. Extinction Ratio, 23 ℃¹	dB	20
Min. Return Loss¹	dB	45
Min. Responsivity , 5%	mA/W	21
Max. Responsivity Temperature Dependence (λc)	dB	0.3
Max. Responsivity Polarization Dependence	dB	0.1
Max. Dark Current (70 ℃, - 5 V bias)	nA	10
Max. Power on photodetector	mW	10
Fiber Type	-	Fujikura PM 980 Panda Fiber
Operating Temperature	℃	0 to + 70
Storage Temperature	℃	- 40 to + 85
Soldering emperature ( > 2 mm from head, < 5s)	℃	≤ 260

¹IL is 0.5 dB higher, RL is 5 dB lower and ER is 2 dB lower for a pair of connector added. Connector key is aligned to slow axis.
