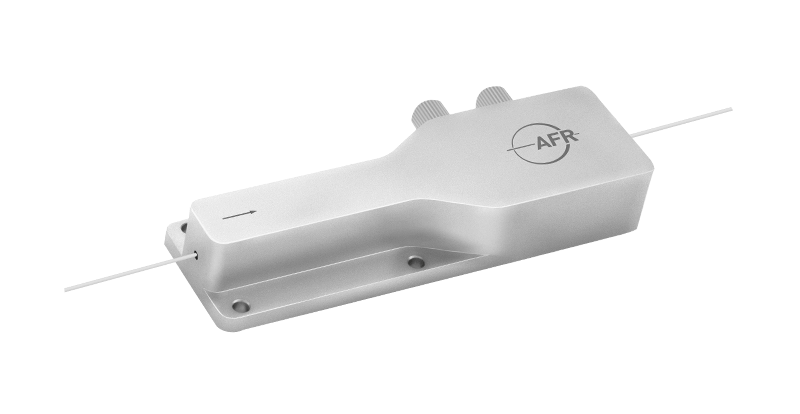

Cladding Power Stripper (CPS)

The 800 - 2000 nm 20/50/200/800 W CPS is designed for stripping off residual cladding power.The Cladding Power Stripper (CPS) is designed for efficiently stripping off residual cladding power, ASE and escaped core modes of double cladding fiber while preserving minimal degradation to signal power and beam quality.

Inquiry now Download

Product Detail

The Cladding Power Stripper (CPS) is designed for efficiently stripping off residual cladding power, ASE and escaped core modes of double cladding fiber while preserving minimal degradation to signal power and beam quality.

Specifications
Parameter	Unit	Value
Operating Wavelength Range	nm	800 - 2000
Min. Stripping Efficiency	%	98
Signal Insertion Loss	dB	0.3
Fiber Type for Input and Output	-	10/125 DCF or 20/130DCF or 30/250 DCF
Max. Stripped Power	W	20	50	200	800
Package Dimensions	mm	P2	P5	P7	P8
Operating Temperature	℃	- 5 to + 60
Storage Temperature	℃	- 40 to + 85
