Product Detail

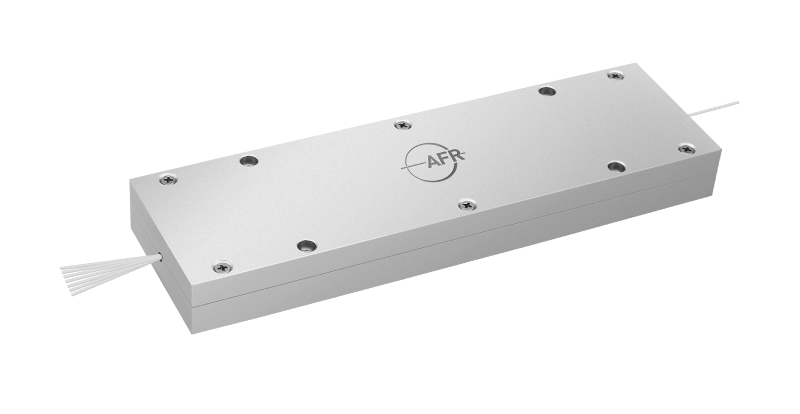

The High Power N × 1 Laser Combiner is designed for combining the power from N units of kW class fiber laser with high efficiency. The laser combiner is available for different fiber types.
Key
Features
Applications
● Low Brightness Loss
● Fiber Lasers
● High Power Handling
Specifications
Parameter
Unit
Value
Product Type1
-
3 × 1 or 4 × 1 or 7 × 1
Laser Wavelength Range
nm
1060 - 1080
Fiber Type for Input
-
20/130, 0.08/0.46 NA
Fiber Type for Output
-
100/120/360, 0.22 NA or 50/70/360, 0.22 NA
Input Power Handling per Port
W
3000
Max. Backward Power Handling2
W
1000
Min. Power Transfer Efficiency2
%
97
Max. Beam Parameter Product (BPP)
mm mrad
4
Package Dimensions
mm
205 × 60 × 22
Operating Temperature (Active Cooling
Required)
℃
0 to + 65
Storage Temperature
℃
- 40 to + 85
1If you have special product type requirements, please contact sales.
2The power in the core of the fiber.
3Do not operate without proper high power termination (QBH cable, for example).
