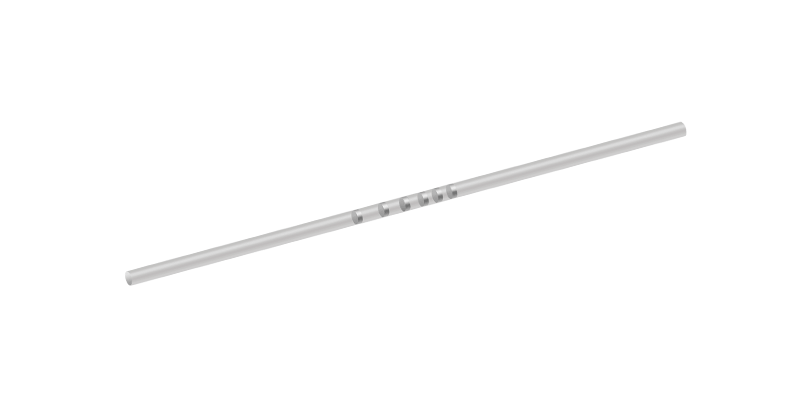

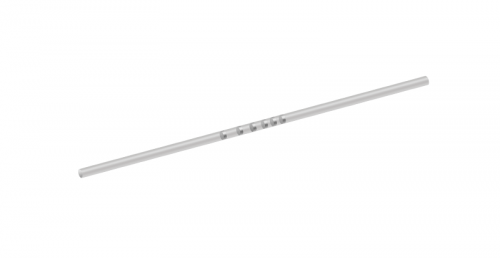

ClearCut Pulse Stretcher for Ultrafast Lasers

The ClearCut pulse stretchers are chirped fiber bragg gratings for ultrafast fiber lasers. With AFR's ClearCut design and special process, the devices could provide large dispersion for pulse stretching and performance with outstanding reliability. Custom configurations are available.

Inquiry now Download

Product Detail

Key Features	Applications
Large Dispersion for Pulse Stretching	Ultrafast Laser
Low Temperature Slope
Exceptional Reliability

Specifications

Parameter	Unit	Value
Center Wavelength	nm	1030
Tolerance on Center Wavelength	nm	± 1
Dispersion Parameter (D₂)¹	ps/nm	107.0	10.3
Reflection Bandwidth (FWHM)	nm	1 - 10	1 - 18
Tolerance on Reflection Bandwidth	nm	1
Peak Reflectivity	%	> 40
Total Stretching Windows	ns	Up to 1.0
Polarization Extinction Ratio	dB	≥ 20
Fiber Type¹	-	PM980
Package Dimensions	mm	Recoated
Storage Temperature	℃	- 40 to + 85

¹The dispersion parameter and fiber type could be customized.
