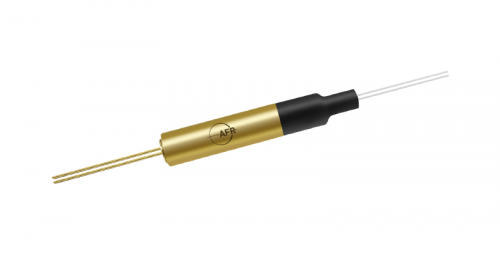

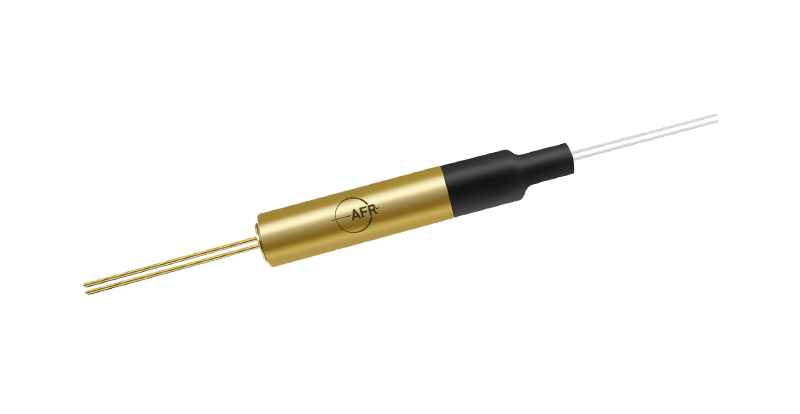

2 μm Fiber Pigtailed Photodiode

The 2 μm Fiber Pigtailed Photodiode is a coaxial package photoelectrical component. It features high responsivity, low dark current and good temperature performance over a wide wavelength range.

Inquiry now Download

Product Detail

Key Features	Applications
High Responsivity	Optical Sensing System
Low Dark Current

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	2000
Operating Wavelength Range	nm	λc ± 40
Min. Responsivity	A/W	0.8
Min. Return Loss¹	dB	40
Max. Reverse Voltage (VR)	V	1
Max. Input Power	mW	10
Typical Bandwidth (RL = 50 Ω, VR = 0 V)	MHz	90
Max. Dark Current (VR = 0.5 V @ 70 ℃)	uA	1
Max. Capacitance (VR = 0 V, f = 1 MHz)	pF	50
Fiber Type	-	SMF-28 Fiber
Operating Temperature	℃	0 to + 70
Storage Temperature	℃	- 40 to + 85
Soldering Temperature (over 2 mm from head, less than 5s)	℃	≤ 260

¹RL is 5 dB lower for each connector added.
