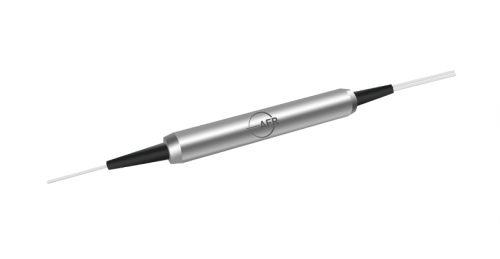

Product Detail
|
Key Features |
Applications |
|
High Extinction Ratio |
EDFA |
|
Low Insertion Loss |
Fiber Sensing |
|
High Return Loss |
Fiber Optic Instruments |
Specifications
Parameter
Unit
Value
Center Wavelength (λc)
nm
1064
Operating Wavelength Range
nm
λc ± 20
Configuration
-
1 × 2
2 × 2
Max. Excess Loss
dB
0.7
1.1
Max. Uniformity (only for 50%)
dB
0.6
0.8
Tap Ratio
%
1 ± 0.2, 2 ± 0.4, 5 ± 1.0, 10, and 50
Min. Return Loss
dB
50
Min. Extinction Ratio, 23 ℃
dB
20
Max. Optical Power (Continuous Wave)
mW
300
Max. Tensile Load
N
5
Fiber Type
-
HI 1060 or PM 980 Panda Fiber for tap port
-
PM 980 Panda Fiber for input & output ports
Operating Temperature
℃
- 5 to + 70
Storage Temperature
℃
- 40 to + 85
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
2E.L. will be 0.2 dB higher if tap port is HI 1060 Fiber.
