Product Detail

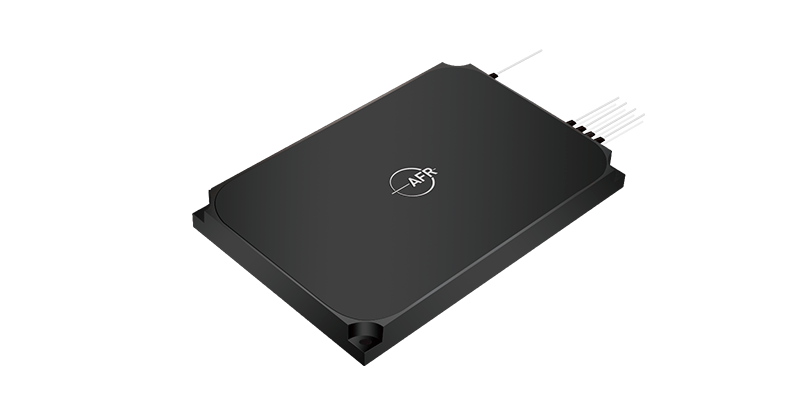

The PMFCM series is manufactured by using advanced technology to allow the input signal to be split into multiple channels at a given splitting ratio with high extinction ratio, low excess loss, good uniformity, low WDL and low TDL. It can be widely used in fiber sensors, amplifiers, various laser applications, etc.
Key Features
Applications
High Extinction Ratio
Fiber Sensing
Low Insertion Loss
Fiber Lasers
Low Wavelength Dependence Loss
Specifications
|
Parameter |
Unit |
Value |
||
|
Configuration |
- |
1 × 3 |
1 × 4 |
1 × 8 |
|
Center Wavelength (λc) |
nm |
1064 |
1064 |
1064 |
|
Operating Wavelength Range |
nm |
λc ± 30 |
λc ± 30 |
λc ± 30 |
|
Insertion Loss |
dB |
≤ 6.1, Typ. 5.7 |
≤ 7.7, Typ. 7.4 |
≤ 11.5, Typ. 11.2 |
|
Wavelength Dependent Loss |
dB |
≤ 0.5, Typ. 0.3 |
≤ 0.5, Typ. 0.3 |
≤ 0.5, Typ. 0.3 |
|
Max. IL Uniformity |
dB |
0.7 |
0.8 |
1 |
|
Min. Return Loss |
dB |
50 |
50 |
50 |
|
Min. Directivity |
dB |
50 |
50 |
45 |
|
Min. Extinction Ratio |
dB |
20 |
20 |
20 |
|
Max. Optical Power |
mW |
300 |
300 |
300 |
|
Fiber Type |
- |
PM 980 Panda Fiber |
PM 980 Panda Fiber |
PM 980 Panda Fiber |
|
Operating Temperature |
℃ |
- 5 to + 70 |
- 5 to + 70 |
- 5 to + 70 |
|
Storage Temperature |
℃ |
- 40 to + 85 |
- 40 to + 85 |
- 40 to + 85 |
|
Package Dimensions |
mm |
160 × 140 × 10 |
160 × 140 × 10 |
160 × 160 × 10 |
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
