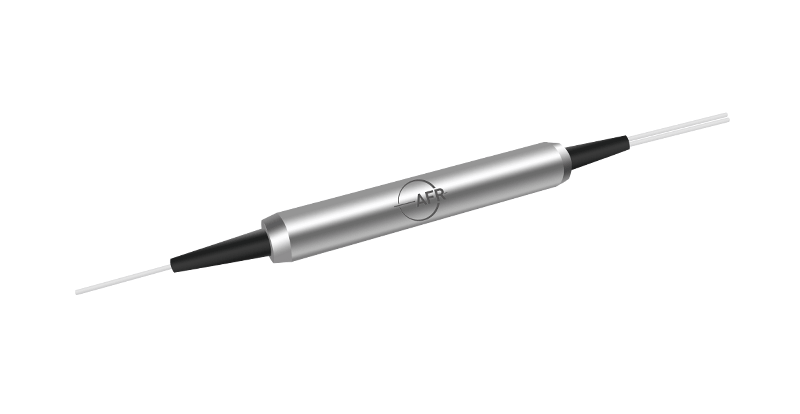

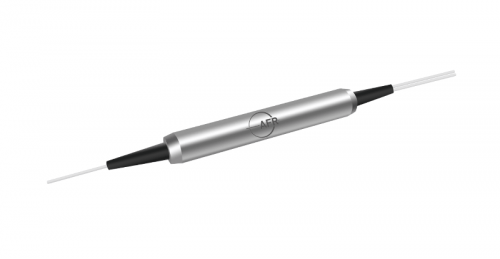

2 μm Polarization Maintaining Tap Coupler

It allows the input signal to be splitted at various ratios.
  • Product Detail

The 2 µm Polarization Maintaining Tap Coupler is manufactured by using advanced technology to allow the input  signal to be splitted at various ratios with high extinction ratio.

Specifications

Parameter

Unit

Value

Center Wavelength (λc)

nm

2000

Operating Wavelength Range

nm

λc ± 40

Configuration

-

1 × 2

2 × 2

Max. Excess Loss

dB

1.2

1.5

Max. Uniformity (only for 50%)

dB

0.6

0.8

Tap Ratio

%

1 ± 0.2, 2 ± 0.4, 4 ± 0.8, 5 ± 1.0, 10, 20 and 50

Min. Return Loss

dB

50

Min. Extinction Ratio

dB

18

Max. Optical Power (Continuous Wave)

mW

300

Max. Tensile Load

N

5

Operating Temperature

- 5 to + 70

Storage Temperature

- 40 to + 85

Fiber Type

-

SMF-28 or PM 1550 Panda fiber for tap port

PM 1550 Panda fiber for input & output ports
