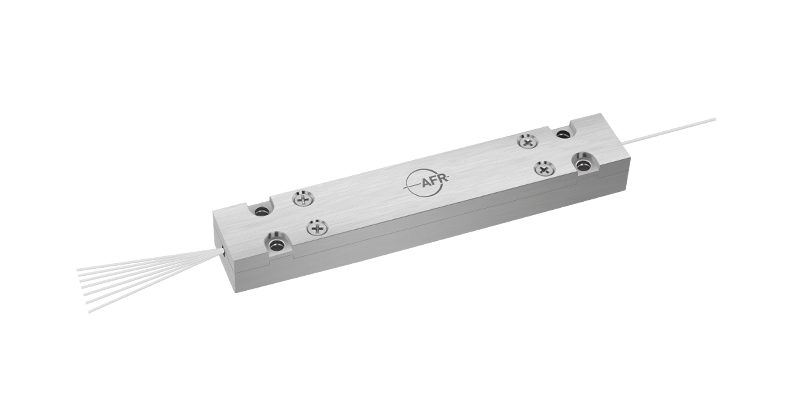

The 7 × 1 Multimode Pump Combiner is designed for combining the power from 7 multimode laser diodes.
Product Detail
The 7 × 1 Multimode Pump Combiner is designed for combining the power from 7 multimode laser diodes. The pump combiner is also available for different fiber types.
|
Key Features |
Applications |
|
● High Coupling Efficiency |
● Fiber Laser |
|
● High Power Handling |
Specifications
|
Parameter |
Unit |
Value |
|
Product Type |
- |
7 × 1 |
|
Pump Wavelength Range |
nm |
900 - 1000 |
|
Fiber Type for Input (Pump Channel) |
- |
Nufern 105/125 (0.15 NA or 0.22 NA) |
|
Fiber Type for Output |
- |
220/242DC, 0/400, 30/250 DCF, 20/400 DCF |
|
Max. Input Pump Power |
W |
7 × 100 |
|
Min. Multimode Power Transfer Efficiency |
% |
94 (Typ.95) |
|
Package Dimensions |
mm |
100 (L) × 15 (W) × 10 (H) |
|
Storage Temperature |
℃ |
- 40 to + 85 |
|
Operating Temperature |
℃ |
0 to + 65 |
1Mode number summation of all input fibers should be less than that of output fiber.
