The (18+1)×1 Multimode Pump and Signal Combiner enables highly efficient combining of the powers from up to 18 multimode pump diodes and a signal laser into a double cladding output fiber.
Product Detail

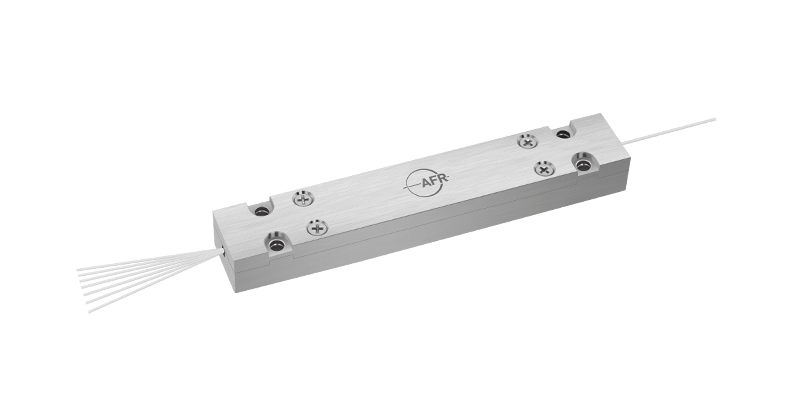

The (18+1)×1 Multimode Pump and Signal Combiner enables highly efficient combining of the powers from up to 18 multimode pump diodes and a signal laser into a double cladding output fiber. Available for different fiber types.
Key Features
Applications
● High Power Transfer Efficiency
● Fiber Lasers
● Wide Wavelength Range
● Fiber Amplifiers
Specifications
Parameter
Unit
Value
Product Type
-
(18+1)×1
Pump
Wavelength Range
nm
900 - 1000
Signal
Wavelength Range
nm
1064
Fiber Type
for Input (Pump Channel)
-
Nufern 105/125 (0.15 NA or 0.22 NA)
Fiber Type
for Input (Signal Channel)
-
10/125 DC, 0.08/0.46 NA
Fiber Type
for Output
-
30/250 DC, 0.06/0.46 NA
Max. Input
Pump Power
W
18 × 10 W
Signal Channel Insertion Loss
dB
< 0.70
Typ. Signal Channel Insertion Loss
dB
0.5
Min. Pump Efficiency
%
95
Typ. Pump Efficiency
%
97
Package
Dimensions
mm
100 (L) × 15 (W) × 10 (H)
Operating Temperature
℃
- 5 to + 65
Storage Temperature
℃
- 40 to + 85
