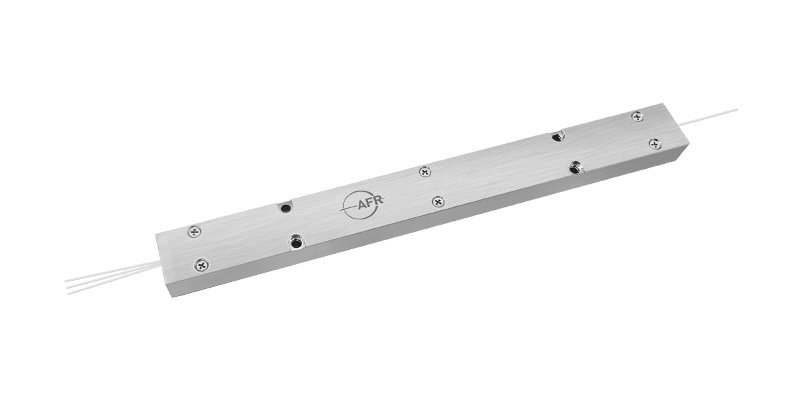

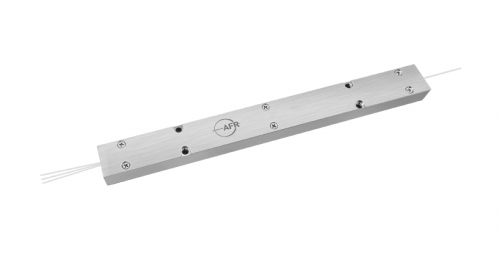

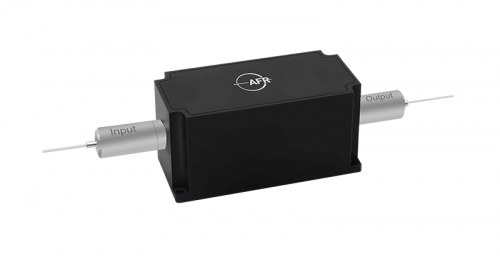

The 2000 nm & 793 nm (2+1)×1 Multimode Pump and Signal Combiner enables highly efficient combining of the powers from 2 multimode pump diodes and a signal laser into a double cladding output fiber.
Product Detail
The 2000 nm & 793 nm (2+1)×1 Multimode Pump & Signal Combiner enables highly efficient combining of the powers from 2 multimode pump diodes and a signal laser into a double cladding output fiber. The Pump & Signal Combiner is also available for different fiber types.
Features
Applications
High Coupling Efficiency
Fiber Laser
Low Insertion Loss
EDFA
|
Specifications |
|
|
|
|
Parameter |
Unit |
Value |
|
|
Product Type |
- |
(2+1)×1 |
|
|
Pump Wavelength |
nm |
793 |
|
|
Signal Wavelength |
nm |
2000 |
|
|
Fiber Type for Input (Pump Channel) |
- |
Nufern 105/125 (0.15 NA or 0.22 NA) |
|
|
Fiber Type for Input (Signal Channel) |
- |
Nufern SM-GDF-10/130-15FA |
|
|
Fiber Type for Output |
- |
Nufern SM-GDF-10/130-15FA |
|
|
Signal Channel Insertion Loss |
dB |
< 0.60 |
|
|
Typ. Pump Efficiency |
% |
92 |
|
|
Min. Pump Efficiency |
% |
90 |
|
|
Max. Input Pump Power |
W |
2 × 5 |
2 × 30 |
|
Package Dimensions |
mm |
P1: 50 (L) × 5 (W) × 5 (H) |
P2: 70 (L) × 12 (W) × 8 (H) |
|
Operating Temperature |
℃ |
0 to + 65 |
|
|
Storage Temperature |
℃ |
- 40 to + 85 |
|
