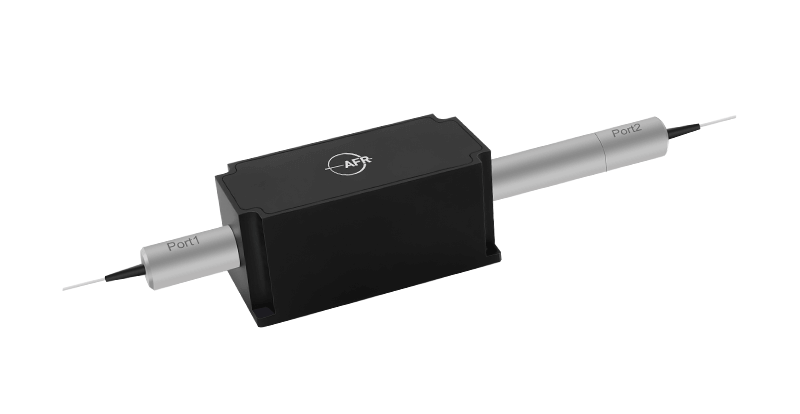

1064 nm 50 W Isolator

The 1064 nm 50 W Isolator is ideal for fiber laser and instrumentation applications.
  • Product Detail

The High Power Polarization Insensitive Isolator is characterized with low insertion loss,high isolation, high power   handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.

Specifications

Parameter

Unit

 Value

Center Wavelength (λc)

nm

1064

Operating Wavelength Range

nm

λc ± 10

Min. Isolation, 23 ℃, all polarization states, at  λc

dB

25

Typ. Insertion Loss, at 23 ℃, at λc

dB

0.5

Max. Insertion Loss, at 23 ℃, at λc

dB

0.8

Max. Polarization Dependent Loss

dB

0.2

Min. Return Loss

dB

45

Max. Average Optical Power

W

50

Max. Peak Power for ns Pulse

kW

 20

Max. Tensile Load

N

5

Fiber Type

-

Specified by ordering info

Operating Temperature

+ 10 to + 50

Storage Temperature

0 to + 60
