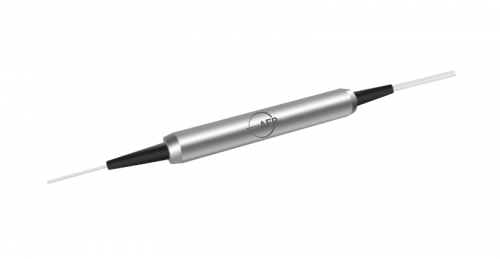

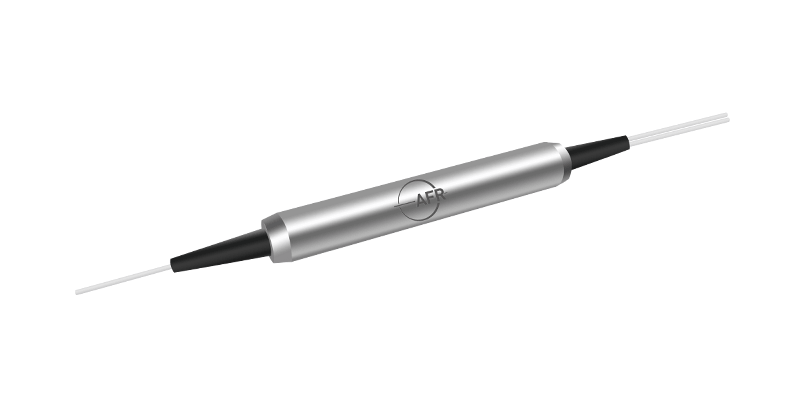

AFR 1064 nm Optical Isolator PBS/PBC for Fiber Lasers, Fiber Sensing

1064 nm Isolator PBS/PBC

The 1064 nm Isolator Polarization Beam Combiner/Splitter is a compact device which provides both polarization beam combining and optical isolation functions in one integrated device. The most common application is to combine the light of two pump lasers into a single fiber by doubling the pump power.

Inquiry now Download

Product Detail

Key Features	Applications
High Extinction Ratio	Fiber Lasers
Low Insertion Loss	Fiber Sensing
Compact Size

Specifications

Parameter	Unit	Value
Center Wavelength (λc)	nm	1064
Typ. Insertion Loss, 23 ℃	dB	1.8
Max. Insertion Loss, 23 ℃	dB	2.1
Typ. Isolation, 23 ℃	dB	35
Min. Isolation, λc @ power ≤ 30 mW, 23 ℃	dB	25
Min. Extinction Ratio (for Splitter Only)	dB	20
Min. Return Loss	dB	50
Min. Directivity	dB	50
Max. Optical Power (Continuous Wave)	mW	300
Fiber Type	-	PM 980 Panda Fiber for Ports 1 & 2
	-	HI 1060 or PM Panda Fiber for Port 3
Max. Tensile Load	N	5
Operating Temperature	℃	- 5 to + 50
Storage Temperature	℃	- 40 to + 85

¹IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
