AFR 1064 nm Singlemode Fiber Splitter (FUD-3584) for Optical Communication Systems, Fiber Sensing

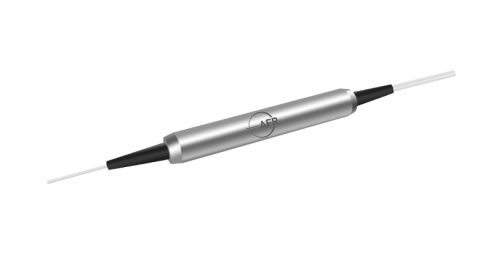

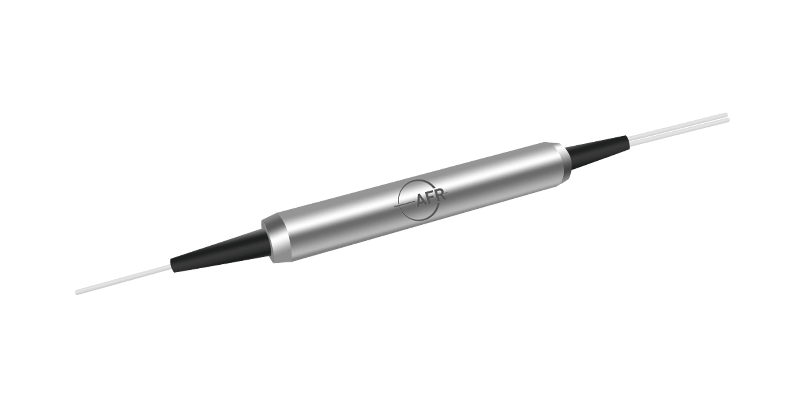

1064 nm Singlemode Coupler (FUD-3584)

The Singlemode Coupler offers very low insertion loss and excellent environmental stability. Accurate coupling ratios from 1/99 to 50/50 are available with very good uniformity in the operating wavelength range. These components find extensive applications to perform power splitting and monitoring functions in all kinds of optical communication systems.

Inquiry now Download

Product Detail

Key Features	Applications
Excellent Environmental Stability	Optical Communication Systems
Low Insertion Loss	Fiber Sensing

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	1064
Operating Wavelength	nm	λc ± 10
Coupling Ratio	%	01/99	02/98	05/95	10/90
Max. Insertion Loss¹	dB	22/0.3	18.5/0.35	14.5/0.5	11.5/0.75
Coupling Ratio	%	20/80	30/70	40/60	50/50
Max. Insertion Loss¹	dB	8.0/1.5	6.0/2.0	4.8/2.8	3.6/3.6
Max. Polarization Dependent Loss	dB	0.2
Max. Excess Loss	dB	0.3
Thermal Stability	dB/℃	≤ 0.005
Min. Return Loss²	dB	50
Min. Directivity	dB	50
Max. Average Optical Power³	W	10
Max. Peak Power for ns Pulse	kW	10
Fiber Type	-	Nufern, FUD-3584, LMA-GSF, 10/125, 0.075 NA
Operating Temperature	℃	- 40 to + 75
Storage Temperature	℃	- 40 to + 85

¹IL is 0.5 dB higher for each connector added.
²RL is 5 dB lower for connector added.
³The Optical Power is 1 W only for connector added.
