Product Detail

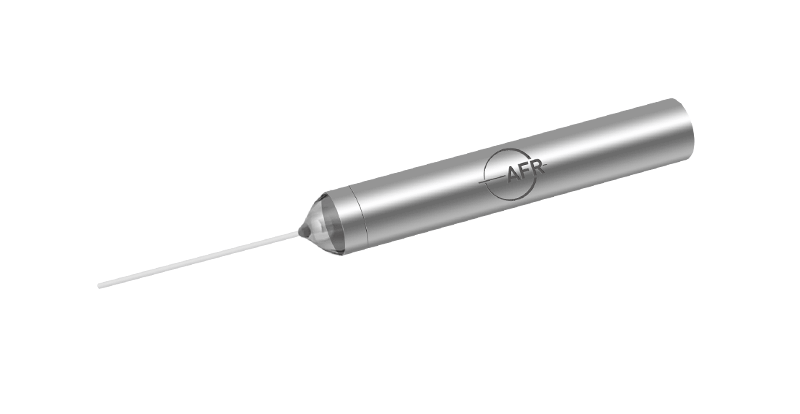

The 1064 nm PM Fiber Collimator is a basic element for in-line fiber optic components, such as isolator. It has low insertion loss and high return loss. The unique processing and high quality AR coating enable this PM Fiber collimator to handle high average power.
Key Features
Applications
High Power Handling
Fiber Coupling
High Return Loss
Beam Delivery
Specifications
|
Parameter |
Unit |
Value |
|
Center Wavelength (λc) |
nm |
|
|
Operating Wavelength Range |
nm |
λc ± 20 |
|
Working Distance |
mm |
50 |
|
Typ. Insertion Loss |
dB |
0.45 |
|
Max. Insertion Loss |
dB |
0.50 |
|
Min. Extinction Ratio |
dB |
20 |
|
Min. Return Loss |
dB |
55 |
|
Max. Optical Power (Continuous Wave) |
W |
3, 5, 10 |
|
Max. Peak Power (Pulse Width, 10 ns) |
kW |
10 |
|
Max. Tensile Load |
N |
5 |
|
Fiber Type |
- |
|
|
Operating Temperature |
℃ |
- 5 to + 70 |
|
Storage Temperature |
℃ |
- 40 to + 85 |
