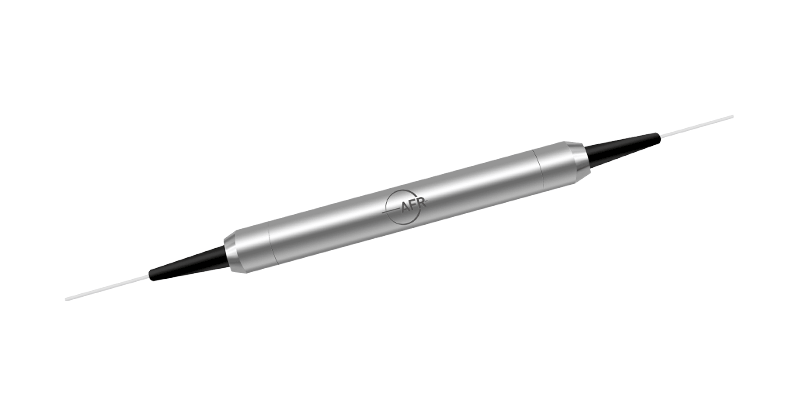

1064 nm In-Line Polarizer

The 1064 nm In-Line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instruments where high polarization extinction ratio is required.

Inquiry now Download

Product Detail

Key Features	Applications
High Extinction Ratio	Fiber Lasers
Low Insertion Loss	Fiber Optic Instruments
High Return Loss

Specifications

Parameter	Unit	Value
Center Wavelength (λc)	nm	1064
Operating Wavelength Range	nm	λc ± 30
Typ. Insertion Loss, 23 ℃	dB	0.4
Max. Insertion Loss	dB	0.6
Typ. Extinction Ratio, 23 ℃	dB	30
Min. Extinction Ratio, 23 ℃	dB	28
Min. Return Loss	dB	50
Max. Optical Power (Continuous Wave)	mW	300
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85

¹IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.

²Connector key is aligned to slow axis.
