AFR broadband analog intensity modulators combine high linearity with a low driving voltage and small footprint, covering the entire frequency range from 20 GHz to beyond 40 GHz (AM20-XT: 20 - 30 GHz; AM40-XT: More than 30 GHz). The AM-XT version provides an extended operating temperature range of - 55 to + 85°C for harsh environmental applications.
AFR's MEMS Variable Optical Attenuator is based on an electrostatic drived micro-electro-mechanical-system (MEMS) chip. The MEMS Variable Optical Attenuator chip consists of a tilting mirror to change light coupling between input and output fibers. The components are characterized with low insertion loss, fast response and compact size. The MEMS Variable Optical Attenuator is widely uesd in WDM networks, power control or gain variation in EDFA.

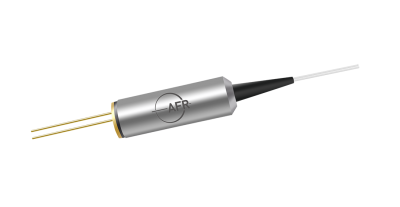

The Integrated Tap Photodiode (TAPD) integrates the functionality of an optical coupler and a photodiode for optical network's power detection. It applies for channel power monitoring in DWDM system, in-line optical network switching protection monitoring (OLP), reconfigurable optical add/drop multiplexers (ROADM), and gain/attenuation monitoring in EDFAs and networks's power detection, etc.
The Gain Flattening Filter is a micro optics device based on environmentally stable thin-film filter technology. It is used to flatten the spectral gain in EDFAs. The components are characterized with low error function, low insertion loss, high return loss, excellent environmental stability and high power handling capability.
The Fiber Collimator is the basic element for in-line fiber optics components, such as isolator and FWDM. The fiber collimator has low insertion loss and high return loss. The unique processing and high quality AR coating also enable this fiber collimator to handle high power.

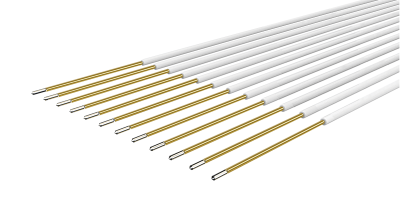

A metal film is deposited on the fiber surface by sputtering process. Metalized fiber can be soldered into a package to achieve hermetical sealing and provide high environmentally reliable interconnection for optical devices. The metalized fiber is widely used in passive and active devices.
Mini Type Manual Variable Optical Attenuator (MVOA) operates by manually moving a shading element into optical beam. The shading element can be integrated and adjusted to get any attenuation value in a range. MVOA features low insertion loss, good resolution, high stability and good reliability. The Manual Variable Optical Attenuator applies for pre-emphasis attenuation, transmitter power control, in-line power equalization, and amplifier power control, etc.
The Multimode Patchcord series has excellent environmental stability, high return loss and low insertion loss. It is ideal for multimode fiber lasers and test instrumentation applications.
The Bandpass Filter is a micro optics device based on environmentally stable thin film filter technology. It is used to block out unwanted noise signals in EDFAs and fiber laser systems. This component is characterized with high isolation, low insertion loss, high return loss, excellent environmental stability and high power handling capability.
The Polarization Maintaining Faraday Mirror is a passive device that provides 90 degree rotation regarding to the polarization state of the input light. The PMFM offers excellent performance, including the lowest possible insertion loss and environmental stability. It is used in amplifiers, fiber lasers and fiber instruments to minimize the polarization effect.

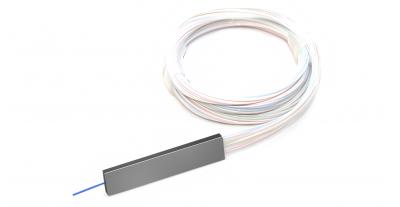

The Planar Lightwave Circuit Splitter is based on unique silica glass waveguide process. It features excellent optical performance with low insertion loss, low PDL, high return loss over a wide wavelength range from 1260 nm to 1620 nm. It is used in FTTx Systems, LAN, WAN and Metro Networks, Analog Passive Optical Networks, CATV Networks and other applications in fiber optics systems.

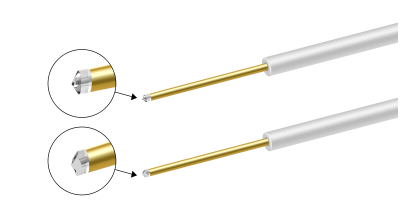

A micro lens was formed at the end of fiber to couple with active chips in LD and PD modules. Conical and wedge lensed fiber are both available, other shapes can be customized. And AFR can provide one stop service for fiber tail assembly, including lensed fiber, fiber metallization, AR-coating, feedthrough soldering, fiber connectorization, etc.

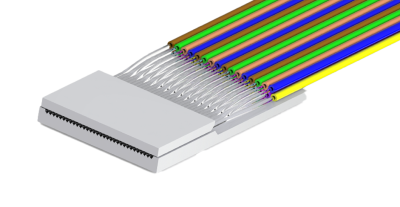

AFR Fiber Arrays are fabricated with high precision V-Groove substrate to achieve an excellent accuracy of fiber core position and high quality of polish surface. AFR provides high quality Fiber Array to meet customers' various demands with low insertion loss, high return loss and compact dimension.

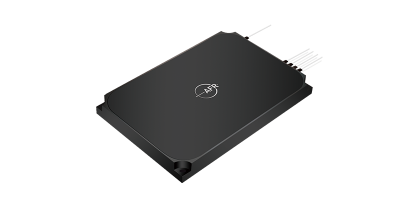

The Coarse WDM Module is expanding the bandwidth of Metro/Access Networks. The 4 channel and 8 channel CWDM modules are based on Coarse Wavelength Division Multiplexer devices. They can act as MUX/DEMUX with 20 nm channel spacing. It has low insertion loss, low PDL, high isolation and good thermal stability.
The High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The optical isolator is ideal for fiber laser and instrumentation applications.

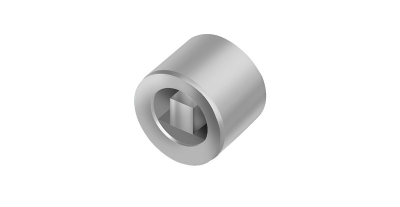

The Polarization Insensitive Isolator Core is a Faraday Rotator based component for in-line fiber optic isolator. It can also integrate with other components to block back reflection or to enhance component isolation. It is insensitive to the input beams polarization state and has high isolation, low insertion loss, low PDL and low PMD.
The Singlemode Dual Window Wavelength Flattened Coupler offers very low insertion loss, low polarization dependent loss and excellent environmental stability. This coupler series offers accurate coupling ratios from 1/99 to 50/50 and is available with very good uniformity in a wide wavelength range of both 1310 nm and 1550 nm windows. These components find extensive applications to perform power splitting and mornitoring functions in all kinds of optical communication systems.
The TIWDM series combines filter WDM, tap coupler and isolator into a compact package. This device is ideal for fiber amplifier application to provide input signal power monitoring, pump/signal multiplexing and isolation functions at the same time. It offers the advantages of cost saving, space saving, and performance improvement.
The Polarization Insensitive Tap Isolator combines a tap coupler and polarization insensitive isolator into a single compact package. It has low polarization dependent loss and very low insertion loss variation. This optical isolator is ideally suited for fiber amplifiers and fiberoptic systems where signal monitoring is required.
The 980/1550 IWDM series combines filter WDM and isolator into a compact package to offer cost saving solution. This device is ideal for fiber amplifier application to combine signal and pump wavelengths with very stable 1550 nm signal isolation. It is designed according to Telcordia standard and capable of high power handling.
