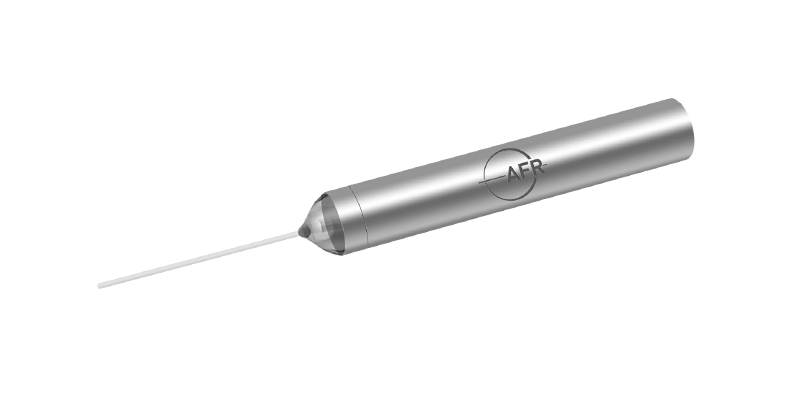

The Fiber Collimator is the basic element for in-line fiber optics components, such as isolator and FWDM. The fiber collimator has low insertion loss and high return loss. The unique processing and high quality AR coating also enable this fiber collimator to handle high power.
Product Detail
|
Key Features |
Applications |
|
High Power Handling |
Fiber Laser |
|
Low Insertion Loss |
Beam Delivery |
Specifications
Parameter
Unit
Value
Center Wavelength (λc)
nm
1310, 1550
Operating Wavelength Range
nm
λc ± 30
Working Distance
mm
5 - 50
51 - 100
101 - 250
251 - 500
Typ. Insertion Loss
dB
0.3
0.35
0.4
0.6
Max. Insertion Loss
dB
0.4
0.45
0.5
0.7
Nominal Beam Diameter
mm
~ 0.45
~ 0.45
~ 0.75
~ 0.95
Min. Return Loss
dB
55
Max. Optical Power
W
5, 10
Max. Tensile Load
N
5
Fiber Type
-
SMF-28 Fiber
Operating Temperature
℃
- 5 to +70
Storage Temperature
℃
- 40 to + 85
1IL is 0.3 dB higher, RL is 5 dB lower for each connector added.
2Maximum optical power handling will be 1 W only for connector added.
