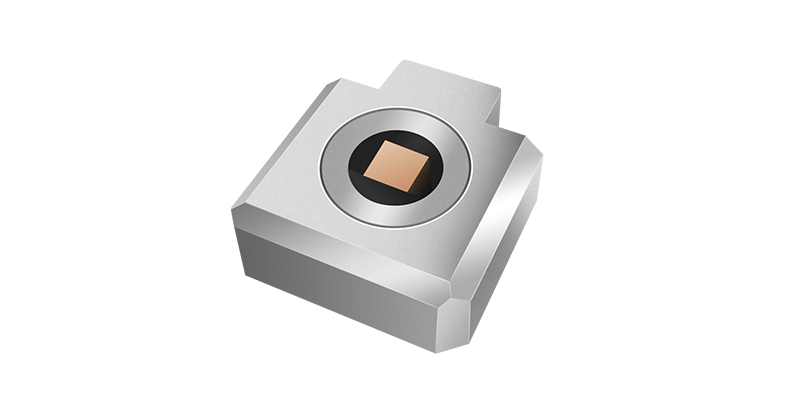

The Free Space Isolator is designed for integration within laser diode package to prevent back reflection. The high isolation, low insertion loss and large aperture features make the optical isolator flexible to fit with different diode laser packaging requirements.
Product Detail
|
Key Features |
Applications |
|
High Isolation |
Laser Chip |
|
Low Insertion Loss |
|
Specifications
Parameter
Unit
Value
Stage
-
Single Stage
Dual Stage
Center Wavelength (λc)
nm
1310 or 1550
Typ. Insertion Loss
dB
0.1
0.2
Max. Insertion Loss
dB
0.2
0.3
Peak Isolation
dB
42
55
Min. Isolation, λc ± 15 nm, 23 ℃
dB
30
40
Clear Aperture
mm
0.9
Max. Optical Power (Continuous Wave)
mW
300
Polarization Plane of Input
-
Indicated in package diagram
Tilt Angle of Input Polarization
degree
0 or specify
Operating Temperature
℃
0 to + 60
Storage Temperature
℃
- 40 to + 85
