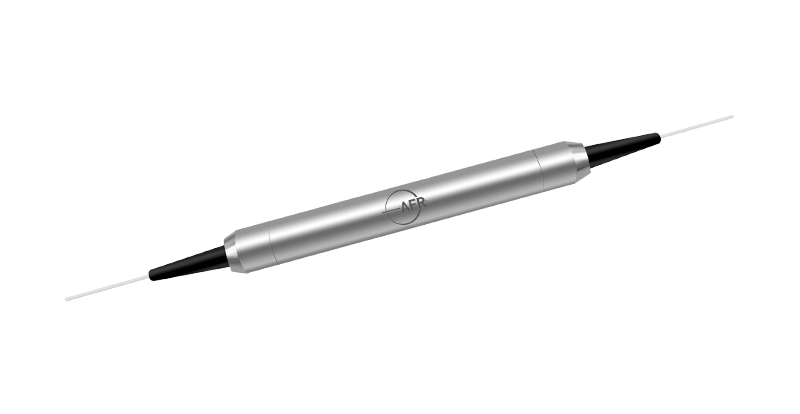

1310/1550 nm Multimode Isolator

The 1310/1550 nm Multimode Isolator is characterized with high performance and low cost.
  • Product Detail

The Multimode Polarization Insensitive Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device high power handling capability. The device is characterized with high performance, high reliability and low cost. It has been widely used in fiber lasers, transmitters and other fiber optics communication equipments to suppress back reflection and back scattering.

Specifications

Parameter

Unit

Value

Center Wavelength (λc)

nm

1310 or 1550

Operating Wavelength Range (λop)

nm

λc ± 20

Typ. Peak Isolation

dB

50

Min. Isolation, 23 ℃

dB

42

Typ. Insertion Loss, 23 ℃

%

0.5

Max. Insertion Loss,all temperature

dB

0.6

Fiber Type

-

Multimode fiber, 62.5/125, 50/125 or 105/125 µm

Max. Optical Power

mW

300

Operating Temperature

- 5 to + 70

Storage Temperature

- 40 to + 85
