Product Detail

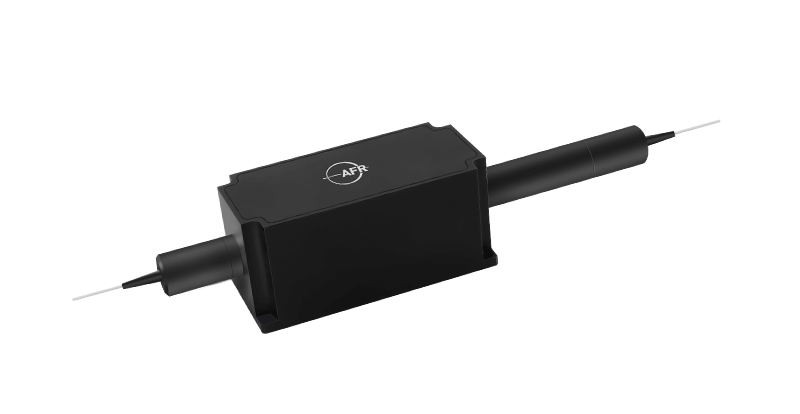

The High Power Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.
Specifications |
||
Parameter |
Unit |
Value |
Center Wavelength (λc) |
nm |
1550 |
Min. Extinction Ratio, 23 ℃ |
dB |
20 |
Typ. Peak Isolation |
dB |
35 |
Min. Isolation, λc, 23 ℃, all polarization states |
dB |
28 |
Typ. Insertion Loss, 23 ℃ |
dB |
0.3 |
Max. Insertion Loss, λc ± 20 nm, 23 ℃ |
dB |
0.5 |
Min. Return Loss (Input/Output) |
dB |
50/50 |
Max. Optical Power |
W |
20 |
Max. Peak Power for ns pulse |
kW |
10 |
Max. Tensile Load |
N |
5 |
Fiber Type |
- |
PM 1550 Panda Fiber |
