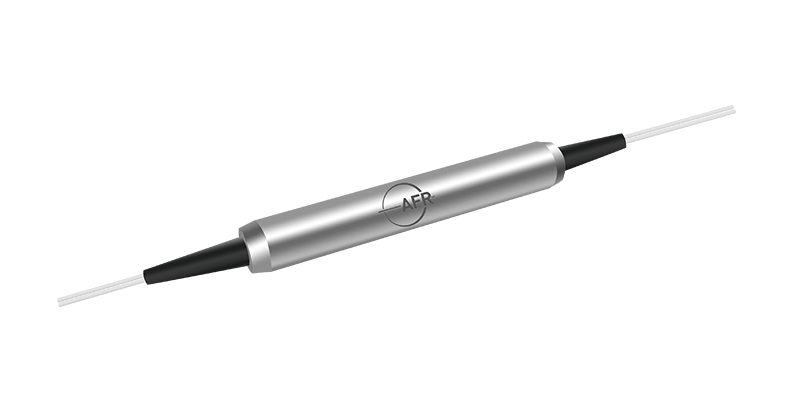

The Twin Isolator integrates two independent isolators into one standard isolator package and is excellently suited for EDFAs or instrumentation designs where two or more isolators are used. The Twin Optical Isolator offers excellent temperature stability, low insertion loss, high isolation, low temperature dependence and great space saving.
Product Detail
|
Key Features |
Applications |
|
Low Insertion Loss |
EDFA |
|
High Isolation |
Fiber Optic Instruments |
Specifications
Parameter
Unit
Value
Stage
-
Dual Stage
Grade
-
Grade P
Grade A
Center Wavelength (λc)
nm
1550
Typ. Peak Isolation (4 → 1, 3 → 2)
dB
52
50
Min. Isolation (4 → 1, 3 → 2), λc ± 15 nm, All Polarization, 23 ℃
dB
40
38
Typ. Insertion Loss (1 → 4, 2 → 3), λc, All Polarization, 23 ℃
dB
0.6
0.75
Max. Insertion Loss (1 → 4, 2 → 3), λc ± 20 nm, All Polarization
dB
0.9
1.0
Min. Return Loss (Input/Output)
dB
55/55
55/55
Min. Directivity (1 → 2, 3 → 4), λc, 23 ℃
dB
55
55
Min. Crosstalk (1 → 3, 2 → 4), λc, 23 ℃
dB
50
50
Max. Polarization Dependent Loss, λc, 23 ℃
dB
0.1
0.2
Max. Polarization Mode Dispersion
ps
0.07
0.1
Max. Optical Power (Continuous Wave)
mW
300
Max. Tensile Load
N
5
Fiber Type
-
SMF-28 Fiber
Operating Temperature
℃
- 5 to + 70
Storage Temperature
℃
- 40 to + 85
1IL is 0.3 dB higher and RL is 5 dB lower for each connector added.
