AFR 1310/1550 nm Free Space Optical Isolator Epoxy for Laser Chip

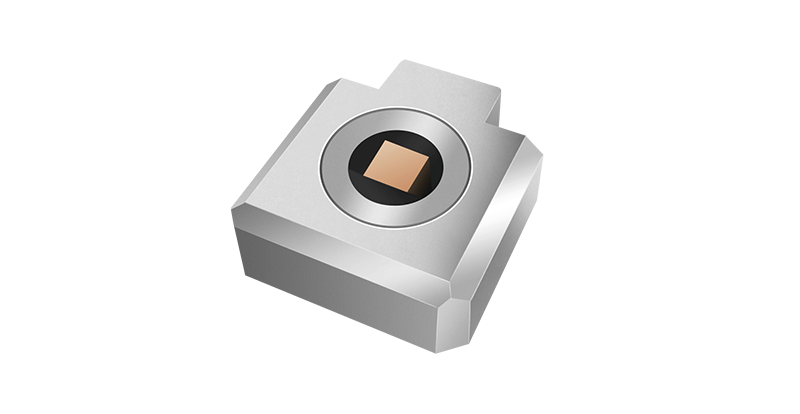

1310/1550 nm Free Space Isolator Epoxy

The Free Space Isolator Epoxy is designed for integration within laser diode package to prevent back reflection. The high isolation, low insertion loss and large aperture features make the optical isolator epoxy flexible to fit with different diode laser packaging requirements.

Inquiry now Download

Product Detail

Key Features	Applications
High Isolation	Laser Chip
Low Insertion Loss

Specifications

Parameter	Unit	Value
Stage	-	Single Stage	Dual Stage
Center Wavelength (λc)	nm	1310 or 1550
Typ. Insertion Loss	dB	0.12	0.20
Max. Insertion Loss	dB	0.30	0.50
Peak Isolation	dB	40	55
Min. Isolation, 23 ℃	dB	30	40
Clear Aperture	mm	0.4 - 0.9
Max. Optical Power (Continuous Wave)	mW	300
Polarization Plane of Input	-	Indicated in package diagram
Tilt Angle of Input Plane	degree	6
Operating Temperature	℃	0 to + 60
Storage Temperature	℃	- 40 to + 85
