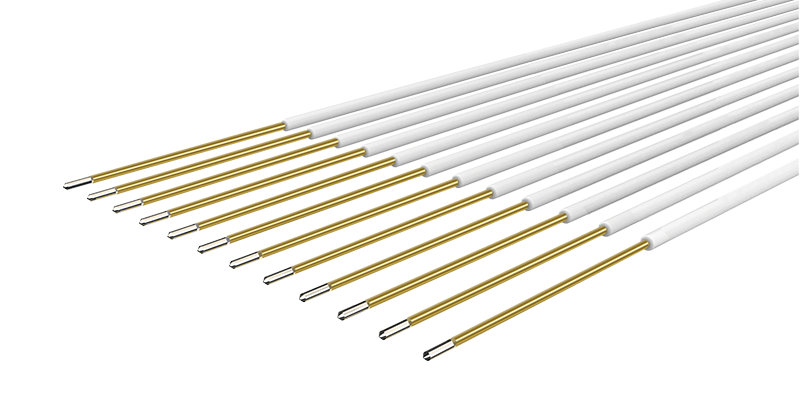

Sputtering Metalized Fiber

A metal film is deposited on the fiber surface by sputtering process. Metalized fiber can be soldered into a package to achieve hermetical sealing and provide high environmentally reliable interconnection for optical devices. The metalized fiber is widely used in passive and active devices.

Inquiry now Download

Product Detail

Key Features	Applications
Hermetical Sealing	Hermetic Feed-Throughs
High Environmentally Reliable Interconnection	Integrated Optics Packaging
	Diode Pigtailing

Specifications
Parameter	Unit	Value
Film Composition	-	Ti/Ni/Au (other materials available on request)
Coating Thickness	nm	100-1000 (other thickness available on request)
Plating Length Tolerance	mm	± 1
Polarization Extinction Ratio (PM Fiber Type)	dB	≥ 20
Recommended Minimum Bend Diameter	mm	25
Helium Leak Rate	Pa.m³/s	≤ 1.0 × 10 ^{- 9}
Pull Strength	N	≥ 5
Fiber Length Tolerance	%	± 10 or specify
Recommended Soldering Temperature	℃	< 300
Recommended Soldering Time	S	< 3
Storage Temperature	℃	- 40 to + 85

¹Single or dual zone metallization available, mid-span metallization available.
