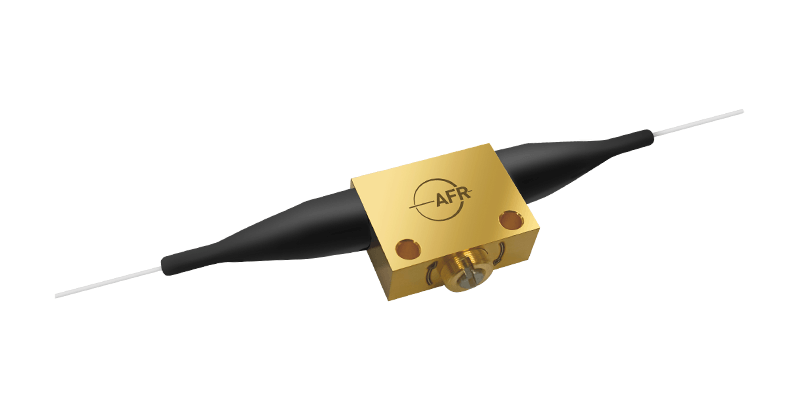

1310/1480/1550 nm Mini Type MVOA

Mini Type Manual Variable Optical Attenuator (MVOA) operates by manually moving a shading element into optical beam. The shading element can be integrated and adjusted to get any attenuation value in a range. MVOA features low insertion loss, good resolution, high stability and good reliability. The Manual Variable Optical Attenuator applies for pre-emphasis attenuation, transmitter power control, in-line power equalization, and amplifier power control, etc.

Inquiry now Download

Product Detail

Key Features	Applications
High Resolution	Fiber Sensing
Compact Size	Equipment
	Fiber Optic Instruments

Specifications
Parameter	Unit	Value
Operating Center Wavelength (λc)	nm	1310, 1480, 1550 or 1310 & 1550
Max. Excess Loss	dB	0.6
Max. WDL, minimum attenuation, 23 ℃	dB	0.3
Min. Attenuation Range	dB	30
Resolution within 10 dB Attenuation Range	dB	0.1
Min. Extinction Ratio (for PM Fiber Type), 23 ℃	dB	20
Max. PDL (for SM Fiber Type), λc, minimum attenuation, 23 ℃	dB	0.05
Max. TDL at attenuation range, λc²	dB/℃	0.01
Min. Return Loss (for SM or PM Fiber)	dB	55
Min. Return Loss (for MM Fiber)	dB	25
Max. Optical Power (Continuous Wave)	mW	300
Operating Temperature	℃	0 to + 70
Storage Temperature	℃	- 40 to + 85

¹IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.
²TDL is exempted when attenuation value over 30 dB.
³PM1310 Fiber for 1310 nm and 3155 nm, PM1550 Fiber for 1480 nm and 1550 nm.
