AFR 1310/1550 nm Multimode Fiber Filter Fiber Splitter for Fiber Optic Instruments, Fiber Sensing

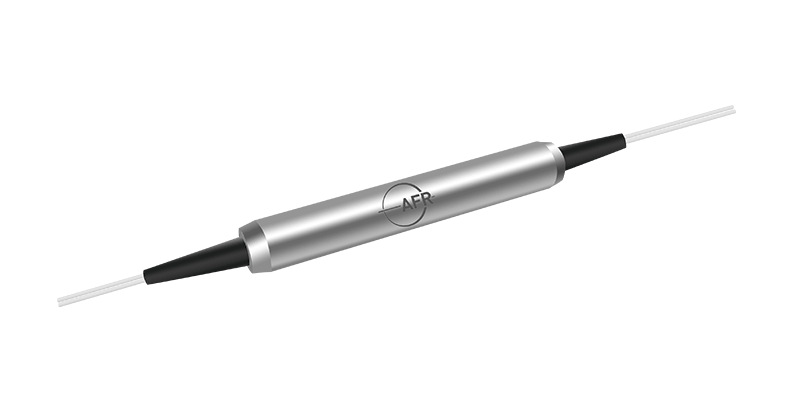

1310/1550 nm Multimode Fiber Filter Coupler

The MMFC series offers very low excess loss, broad operating band and high stability and reliability. The fiber coupler/splitter is extensively used in LAN, multimode fiber communication systems, fiber sensors and testing instruments.

Inquiry now Download

Product Detail

Key Features	Applications
Low Insertion Loss	Fiber Optic Instruments
	Fiber Sensing

Specifications
Parameter	Unit	Value
Center Wavelength	nm	1310 or 1550
Operating Wavelength Range	nm	± 40
Configuration	-	1 x 2	2 x 2
Max. Excess Loss	dB	0.7	1.0
Max. Uniformity	dB	0.6	0.8
Tap Ratio	%	5 ± 1.0, 50 or specify
Min. Return Loss	dB	35
Max. Optical Power (Continuous Wave)	mW	300
Fiber Type	-	Multimode Fiber, 62.5/125, 50/125, 105/125 μm
Max. Tensile Load	N	5
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85

¹IL is 0.3 dB higher for each connector added.
²Above specifications are measured at low order modes.
