1310/1550 nm Fiber Pigtailed Photodiode Array

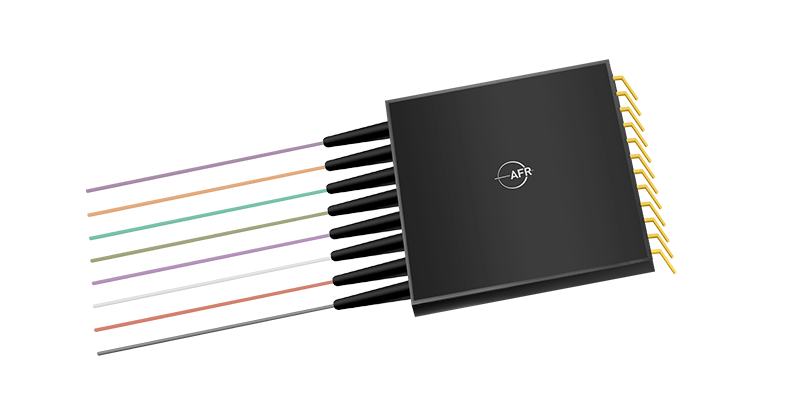

The Fiber Pigtailed Photodiode Array (FPDA) is a compact, multi-channel power-detecting device. It obviously simplifies module design and assembling process by pre-integrating several single power detectors in one package. It features with standard pins with 2.54 mm space that easily mount on PCB. It applies for channel power monitoring in DWDM system, in-line optical network switching protection monitoring (OLP), reconfigurable optical add/drop multiplexers (ROADM), and gain/attenuation monitoring in network's power detection.

Inquiry now Download

Product Detail

Key Features	Applications
High Integration	DWDM System
Standard Pins	Optical Sensing System
High Responsivity

Specifications

Parameter	Unit	Value
Center Wavelength (λc)	nm	1310	1550
Operating Wavelength Range (λop)	nm	λc ± 50 nm
Min. Responsivity	A/W	0.75	0.80
Max.Dark Current (@ 70 ℃, - 5 V Bias)
0.5 GHz Bandwidth	nA	8
2.0 GHz Bandwidth	nA	2
Max.Responsivity Temperature Dependence (λc)	dB	0.3
Max.Responsivity Polarization Dependence	dB	0.1
Min.Return Loss¹	dB	40
Max.Input Optical Power²	mW	10
Max.Reverse Voltage²	V	20
Max.Forward Current²	mA	10
Fiber Type	-	SMF-28 Fiber
Operating Temperature	℃	0 to + 70
Storage Temperature	℃	- 40 to + 85

¹RL is 5 dB lower for each connector added.
²Guaranteed by Photodiode.
