AFR 1310/1550 nm Integrated Tap Photodiode Array for DWDM System, Optical Sensing System

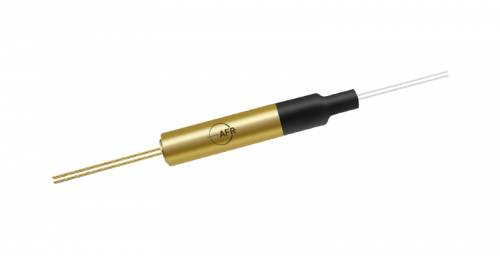

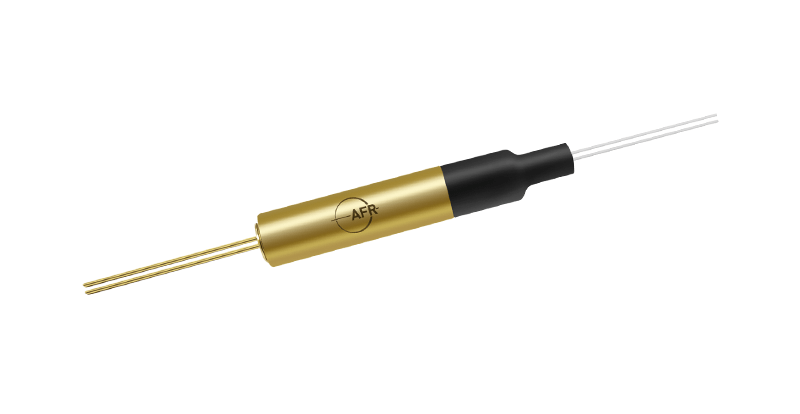

1310/1550 nm Fiber Pigtailed Photodiode

The Fiber Pigtailed Photodiode is a coaxially packaged photoelectrical component. It features high responsivity, low dark current and good temperature performance over a wide wavelength range. It can be applied for channel power monitoring in DWDM system, in-line optical network switching/protection monitoring (OLP), reconfigurable optical add/drop multiplexer (ROADM), and gain attenuation monitoring in EDFAs and networks's power detection, etc.

Inquiry now Download

Product Detail

Key Features	Applications
High Responsivity	DWDM System
Low Dark Current	Optical Sensing System
Good Temperature Performance

Specifications

Parameter	Unit	Value
Center Wavelength (λc)	nm	1310	1550
Operating Wavelength Range (λop)	nm	λc ± 50 nm
Min. Responsivity	A/W	0.75	0.8
Min. Return Loss¹	dB	45
Max. Input power	mW	10
Dark Current (@ 70 ℃, - 5 V bias)
0.5 GHz Bandwidth	nA	8
2.0 GHz Bandwidth	nA	2
Fiber Type	-	SMF-28 Fiber
Operating Temperature	℃	0 to + 70
Storage Temperature	℃	- 40 to + 85
Soldering Temperature (Over 2 mm from head, less than 5s)	℃	≤ 260

¹RL is 5 dB lower for each connector added.
