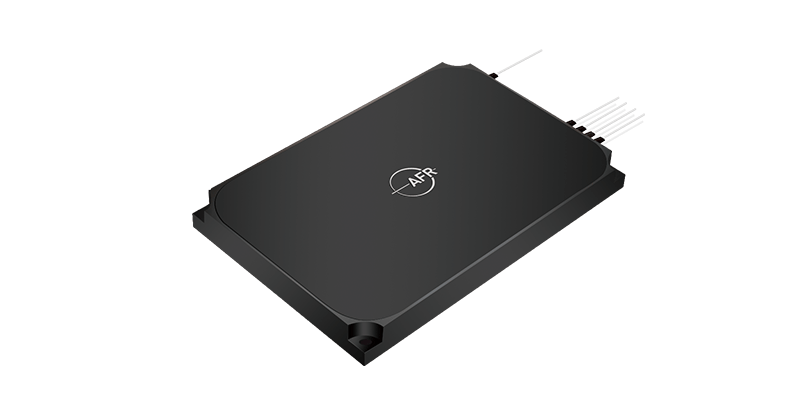

Product Detail
|
Key Features |
Applications |
|
High Extinction Ratio |
Fiber Lasers |
|
Low Wavelength Dependence Loss |
Fiber Sensing |
|
Low Insertion Loss |
|
Specifications
|
Parameter |
Unit |
Value |
||
|
Configuration |
- |
1 × 3 |
1 × 4 |
1 × 8 |
|
Center Wavelength (λc) |
nm |
1310 or 1550 |
1310 or 1550 |
1310 or 1550 |
|
Operating Wavelength Range |
nm |
λc ± 30 |
λc ± 30 |
λc ± 30 |
|
Insertion Loss |
dB |
≤ 5.8, Typ. 5.6 |
≤ 7.5, Typ. 7.0 |
≤ 11, Typ. 10.5 |
|
Wavelength Dependent Loss |
dB |
≤ 0.5, Typ. 0.3 |
≤ 0.5, Typ. 0.3 |
≤ 0.5, Typ. 0.3 |
|
Max. IL Uniformity |
dB |
0.6 |
0.8 |
1 |
|
Min. Return Loss |
dB |
50 |
50 |
50 |
|
Min. Directivity |
dB |
50 |
50 |
45 |
|
Min. Extinction Ratio |
dB |
20 |
20 |
20 |
|
Max. Optical Power |
mW |
300 |
300 |
300 |
|
Max. Temperature Dependent Loss |
dB/℃ |
0.006 |
0.006 |
0.008 |
|
Fiber Type |
- |
PM Panda Fiber |
PM Panda Fiber |
PM Panda Fiber |
|
Operating Temperature |
℃ |
- 5 to + 70 |
- 5 to + 70 |
- 5 to + 70 |
|
Storage Temperature |
℃ |
- 40 to + 85 |
- 40 to + 85 |
- 40 to + 85 |
|
Package Dimensions |
mm |
160 × 140 × 10 |
160 × 140 × 10 |
160 × 160 × 10 |
1IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
