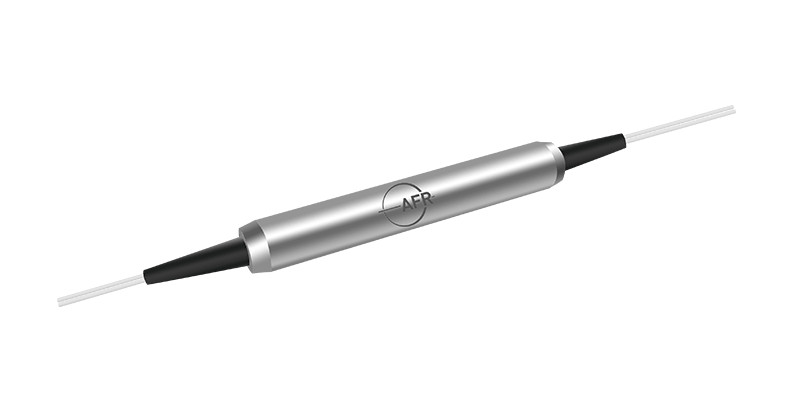

1310/1550 nm Polarization Maintaining Tap Coupler

The 1310/1550 nm Polarization Maintaining Tap Coupler allows the input signal to be splitted at various ratios.

  • Product Detail

The Polarization Maintaining Tap Coupler is manufactured by using advanced technology to allow the input signal to be splitted at various ratios with high extinction ratio.

Specifications


Parameter

Unit

Value


Center Wavelength

nm

1310, 1550


Operating Wavelength Range

nm

λc ± 40


Configuration

-

1 × 2

2 × 2


Max. Excess Loss

dB

0.7

1.1


Max. Uniformity (only for 50%)

dB

0.6

0.8


Tap Ratio

%

1 ± 0.2, 2 ± 0.4,  4 ± 0.8, 5 ± 1.0, 10, 20 and 50


Min. Return Loss

dB

50


Min. Extinction Ratio

dB

20


Max. Optical Power (Continuous Wave)

mW

300


Max. Tensile Load

N

5


Operating Temperature

- 5 to + 70


Storage Temperature

- 40 to + 85


Fiber Type

-

SMF-28 or PM Panda Fiber for tap port;

PM Panda Fiber for Input & Output ports
