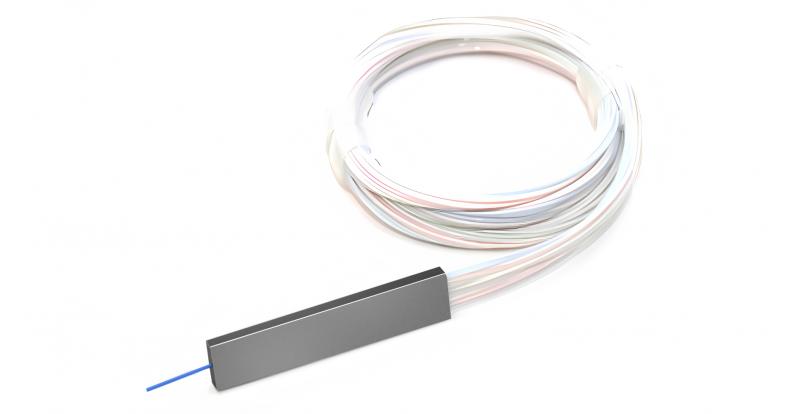

Product Detail
| Key Features | Applications |
| High Return Loss | Metro Networks |
| Low Insertion Loss | Long Haul Networks |
| Low Polarization Dependent Loss |
Specifications
Parameter
Unit
Value
Configuration
-
1 × 4
1 × 8
1 x 16
1 x 32
Operating Wavelength
nm
1260 - 1650
Max. Insertion Loss
dB
7.5
10.5
13.5
16.5
Max. Uniformity
dB
0.5
0.6
1.2
1.3
Max. PDL
dB
0.2
0.2
0.2
0.3
Min. Return Loss
dB
50
Min. Directivity
dB
55
Fiber Type
-
SMF-28 Fiber
Operating Temperature
℃
- 40 to + 85
Storage Temperature
℃
- 40 to + 85
Package Dimensions (L x W x H) for Bare
Fiber
mm
40 × 4 × 4
40 × 4 × 4
50 × 7 × 4
50 × 7 × 4
Package Dimensions (L x W x H) for 900
μm Loose Tube
mm
60 × 7 × 4
60 × 7 × 4
60 × 12 × 4
80 × 20 × 6
Package Dimensions (L x W x H) for 2 mm
& 3 mm Cable
mm
100 × 80 × 10
100 × 80 × 10
120 × 80 × 18
141 × 115 × 18
1Above specifications are for device without connector.
2For device with connectors, IL will be 0.3 dB higher, RL will be 5 dB lower.
