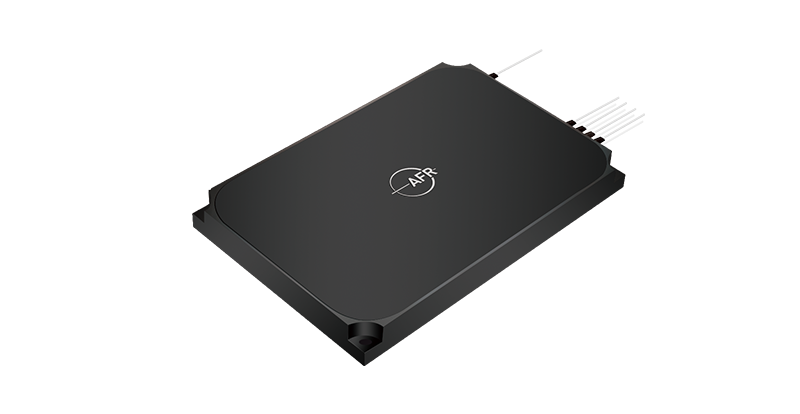

Product Detail
|
Key Features |
Applications |
|
Low Polarization Dependent Loss |
Access/Enterprise Networks |
|
Low Insertion Loss |
Fiber Optic Instruments |
|
High Isolation |
|
Specifications
Parameter
Unit
Value
Channels
-
4 Channels
8 Channels
Operating Wavelength Range
nm
Half Band: 1460 - 1620, Full Band: 1260 - 1620
Center Wavelength
nm
1510, 1530, 1550, 1570
1470, 1490, 1510, 1530
or specify
1550, 1570, 1590, 1610
Min. 0.5 dB Pass Bandwidth
nm
13
13
Max. Insertion Loss
dB
2
3.5
Min. Adjacent Ch. Isolation (Mux)
dB
N/A
N/A
Min. Adjacent Ch. Isolation (Demux)
dB
25
25
Min. Return Loss
dB
50
50
Min. Directivity
dB
50
50
Max. Polarization Dependent Loss
dB
0.1
0.1
Max. Polarization Mode Dispersion
ps
0.2
0.2
Thermal Stability
dB/℃
0.005
0.005
Max. Optical Power
mW
300
300
Fiber Type
-
SMF-28 Fiber
SMF-28 Fiber
Operating Temperature
℃
- 5 to + 70
- 5 to + 70
Storage Temperature
℃
- 40 to + 85
- 40 to + 85
Package Dimensions
mm
100 × 80 × 9.5
133 × 95 × 9.5
1IL is 0.3 dB higher, RL is 5 dB lower for each connector added.
