Custom

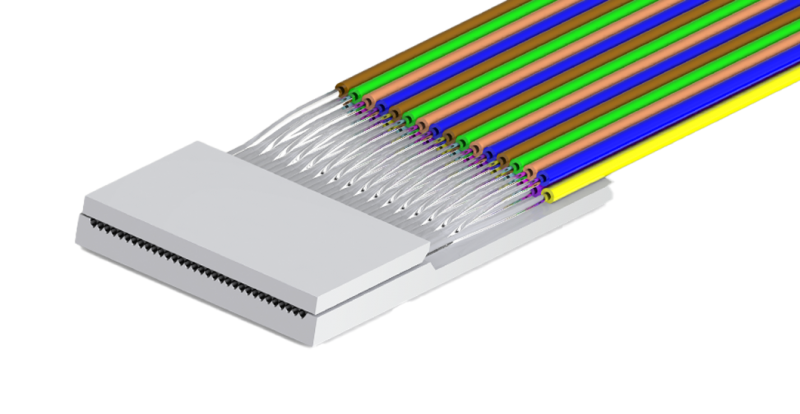

Fiber Array

AFR Fiber Arrays are fabricated with high precision V-Groove substrate to achieve an excellent accuracy of fiber core position and high quality of polish surface. AFR provides high quality Fiber Array to meet customers' various demands with low insertion loss, high return loss and compact dimension.

Inquiry now Download

Product Detail

Key Features	Applications
Compact Dimension	Integrated Fiber Optic Components
High Return Loss
Low Insertion Loss

Specifications
Parameter	Unit	Value
Wavelength	nm	980, 1060, 1310, 1480 or 1550
Typ. Insertion Loss	dB	0.10
Max. Insertion Loss	dB	0.20
Max. Optical Power (Continuous Wave)	mW	300
Fiber Length Tolerance	%	± 10 or specify
Min. Extinction Ratio for PM Fiber	dB	23
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85

¹IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. for 980/1060 nm, IL will increase by an additional 0.1 dB.

²Connector key is aligned to slow axis.
