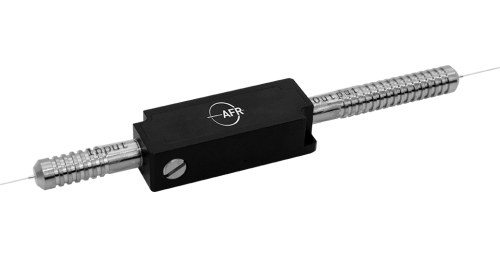

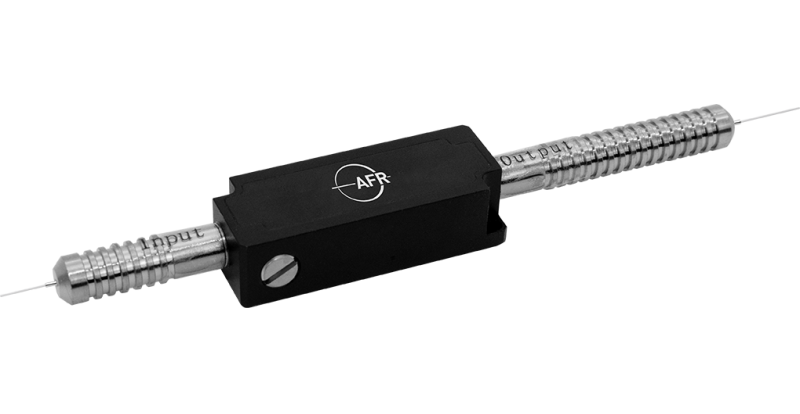

Product Detail
|
Key Features |
Applications |
|
High Power Handling |
Fiber Lasers |
|
Low Insertion Loss |
Fiber Optic Instruments |
Specifications
Parameter
Unit
Value
Center Wavelength (λc)
nm
1550
Max. Polarization Dependent Loss
dB
0.15
Typ. Peak Isolation
dB
35
Min. Isolation, λc, All Polarization States, 23 ℃
dB
28
Typ. Insertion Loss
dB
0.35
Max. Insertion Loss, λc ± 20 nm, 23 ℃
dB
0.5
Min. Return Loss (Input/Output)
dB
50/50
Max. Optical Power
W
20
Max. Peak Power (Pulse Width,10 ns)
kW
10
Max. Tensile Load
N
5
Fiber Type
-
SMF-28 Fiber
Operating Temperature
℃
+ 10 to + 50
Storage Temperature
℃
0 to + 60
1IL is 0.3 dB higher, RL is 5 dB lower and Optical Power is 1 W for each connector added.
