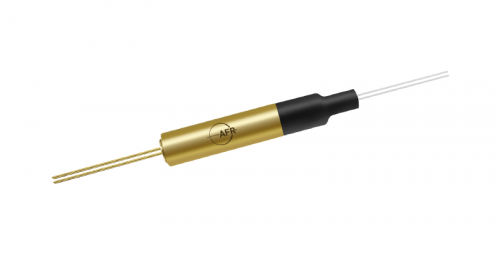

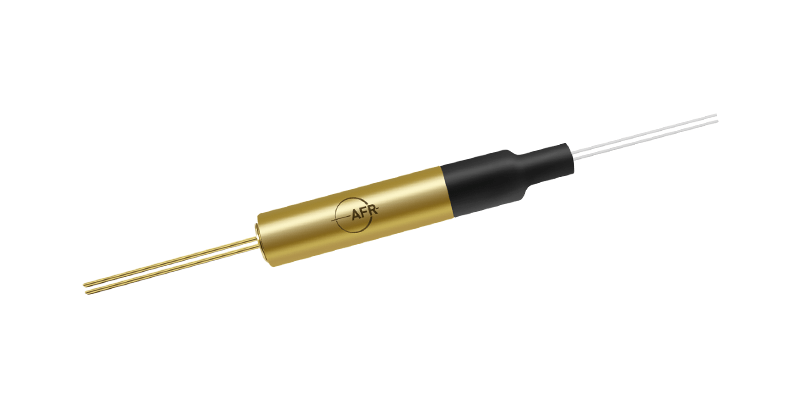

1310/1550 nm Integrated Tap Photodiode

The 1310/1550 nm Integrated Tap Photodiode applys for channel power monitoring in DWDM system.
  • Product Detail

The Integrated Tap Photodiode (TAPD) integrates the functionality of an optical coupler and a photodiode for optical network'spower detection. It applys for channel power monitoring in DWDM system, in-line optical network switching protectionmonitoring (OLP), re-configurable optical add/drop multiplexer (OADM), and gain/attenuation monitoring inEDFA, etc.

Specifications

Parameter

Unit

Value

Center Wavelength Range (λc)

nm

1310/1550

Operating Wavelength Range (λop) nm  λc ± 50

Max. Insertion Loss   1%

dB

0.4

                                   2% dB

0.5

                                   5% dB

0.6

                                  10%

 dB 0.9

Wavelength Flatness

dB

 ≤ 0.2

Max. Polarization Dependent Loss

dB

0.05

Min. Return Loss

dB

45

Responsivity            1%

mA/W

6 - 14, 7 - 15

                                 2% mA/W

12 - 23, 14 - 25

                                 5% mA/W

30 - 60, 35 - 65

                                10%

 mA/W 60 - 110, 70 - 120

Max. Responsivity Temperature Dependence (λc)

dB

0.3

Max. Responsivity Polarization Dependence

dB

0.1

Dark Current (@ 70 ℃, - 5 V bias)   0.5G Bandwidth

                                                          2.0G Bandwidth

 nA

8

2

Max. Optical on  Photodetector

mW

10

Fiber Type -  SMF-28 fiber

Operating Temperature

0 to + 70

Storage Temperature  - 40 to + 85
Soldering Tempeature (Over 2 mm from Head, Less than 5s) ≤ 260
