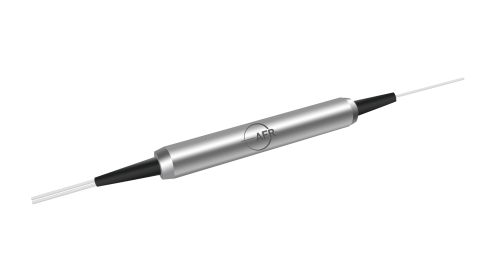

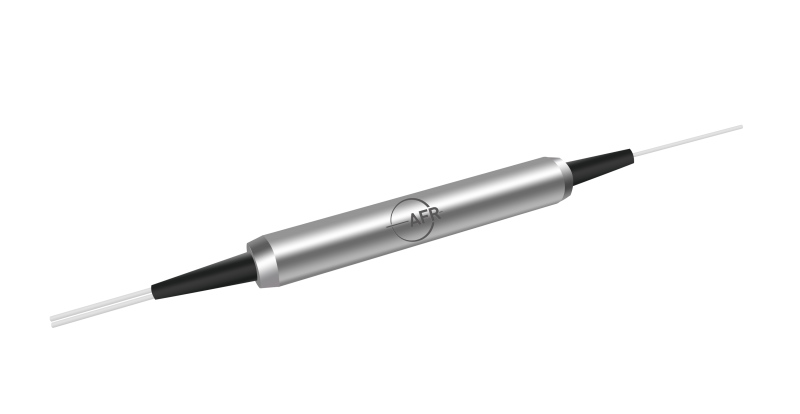

The Polarization Insensitive Tap Isolator combines a tap coupler and polarization insensitive isolator into a single compact package. It has low polarization dependent loss and very low insertion loss variation. This optical isolator is ideally suited for fiber amplifiers and fiberoptic systems where signal monitoring is required.
Product Detail
|
Key Features |
Applications |
|
Low Polarization Dependent Loss |
Fiber Optic Instruments |
|
Low Insertion Loss |
|
Specifications
Parameters
Unit
Value
Stage
-
Single Stage
Dual Stage
Center Wavelength
nm
1310 or 1550
Typ. Peak Isolation
dB
40
55
Min. Isolation, λc ± 10 nm, All Polarization States, 23 ℃
dB
30
45
Typ. Insertion Loss1, λc ± 20 nm, All Polarization States, 23 ℃
dB
0.45
0.6
Max. Insertion Loss1, λc ± 20 nm, - 5 to + 70 ℃, All Polarization States
dB
0.6
0.8
Max. Polarization Dependent Loss (Port 1 to Port 3 and Port 1 to Port 2)
dB
0.1
0.15
Max. Polarization Mode Dispersion (Port 1 to Port 3)
ps
0.25 2
0.05
Min. Directivity (Port 3 to Port 2)
dB
55
Min. Return Loss (Input/Output)
dB
55/55
Coupling Ratio & Tolerance2
%
1.0 ± 0.5 or specify
Max. Optical Power (Continuous Wave)
mW
300
Max. Tensile Load
N
5
Fiber Type
-
SMF-28 Fiber
Operating Temperature
℃
- 5 to + 70
Storage Temperature
℃
- 40 to + 85
1IL is 0.3 dB higher and RL is 5 dB lower for each connector added.
2Low PMD version is available. PMD < 0.05 ps.
3Specs are only for 1% tap ratio. Customized coupling ratio is avaliable.
