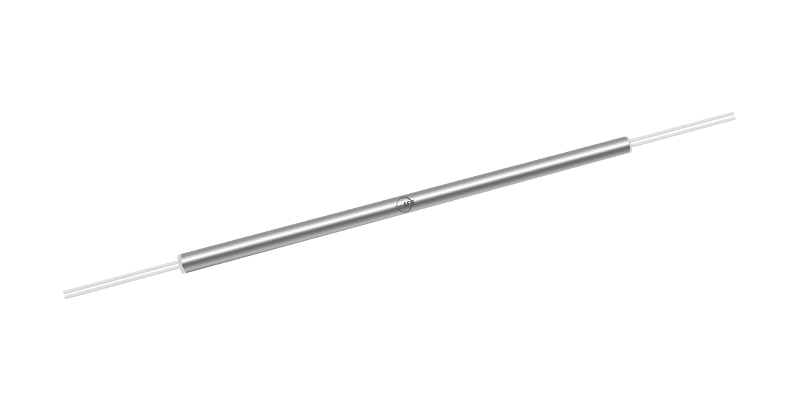

RG, RB, GB Combiner

The RG, RB, GB Combiner enables any two primary colors in the visible wavelength region to be combined. The combiner offers very low insertion loss and excellent environmental stability.

Inquiry now Download

Product Detail

Key Features	Applications
Excellent Environmental Stability	Fiber Laser
Low Insertion Loss	Fiber Optic Instruments

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	532 (G)/635 (R), 488 (B)/635 (R), 488 (B)/532 (G)
Typ. Insertion Loss, λc	dB	0.3
Max. Insertion Loss, λc¹	dB	0.5
Thermal Stability	dB/℃	≤ 0.002
Min. Return Loss²	dB	55
Min. Directivity	dB	55
Max. Optical Power (Continuous Wave)³	mW	100
Operating Temperature	℃	- 40 to + 75
Storage Temperature	℃	- 40 to + 85

¹IL is 1.5 dB higher for each connector added.

²RL is 5 dB lower for connector added.

³The Optical Power is 50 mW only for connector added.

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : RG, RB, GB Combiner

Applications

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Related products

AFR 850 nm Polarization Maintaining Optical Isolator for Fiber Lasers, Fiber Optic Instruments

850 nm Polarization Maintaining Isolator

The High Power Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. This fiber isolator is ideal for fiber laser and instrumentation applications.

AFR 830 nm Optical Isolator for Fiber Lasers, Fiber Optic Instruments

830 nm Isolator

The 830 nm High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The High Power Polarization Insensitive Isolator is ideal for fiber laser and instrumentation applications.

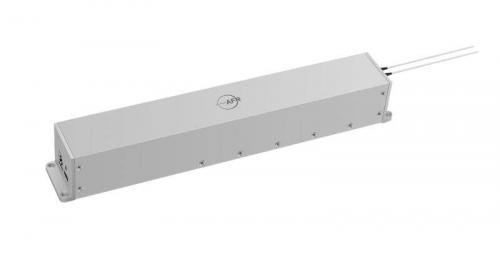

Optical Delay Line with Driver

Motorized Variable Optical Delay Line provides precision optical path length adjustment of up to 500 ps. Driven by a stepping motor and driver has been integrated inside following the RS-232 standard, the MDL has a delay resolution about 0.76 μm (2.5 fs). In addition, its advanced motion design guarantees longevity for long-term continuous operation. Low insertion loss and high reliability make this device ideal for integration in optical coherence tomography (OCT) systems, network equipment and test instruments for precision optical path length control or timing alignment.

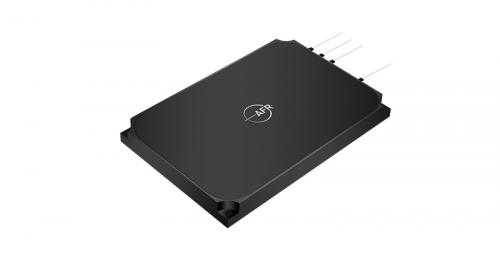

Polarization Maintaining RGB Combiner

The PM RGB Combiner enables three primary colors in the visible wavelength region to be combined. The PM Combiner is based on environmentally stable thin film filter technology and is characterized with high extinction ratio, low insertion loss, and high return loss.

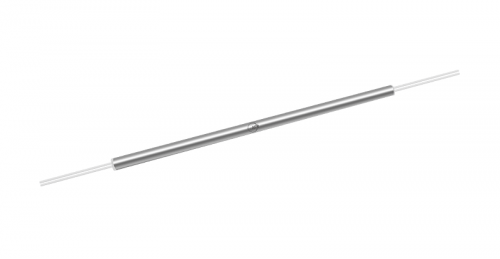

Polarization Maintaining Fused RG Combiner

The Polarization Maintaining Fused RG Combiner is manufactured by using advanced technology and polarization maintaining fiber to enable the red and green light to be combined. The combiner offers low excess loss, small size, high extinction ratio, high return loss, and excellent environmental stability.

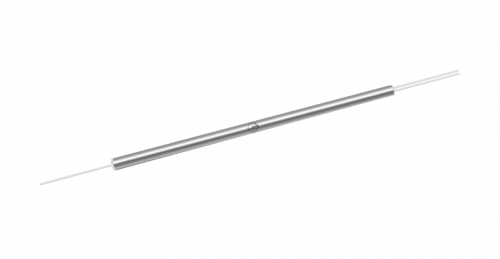

Red, Green, Blue Combiner

The Red, Green, Blue Combiner enables three primary colors in the visible wavelength region to be combined. The combiner offers very low insertion loss and excellent environmental stability.

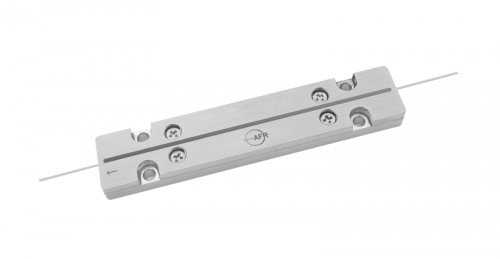

ClearCut Raman Scattering Suppressor Fiber Bragg Grating

The ClearCut Raman Scattering Suppressor Fiber Bragg Grating products are ultra low insertion loss fiber bragg gratings for high power fiber lasers. With AFR's ClearCut designing and special process, the devices can handle kilowatt level pump power and signal power with recoated only. It is the only cost-effective solution that eliminates the SRS at its source and enables immunity from back reflection from the work piece.

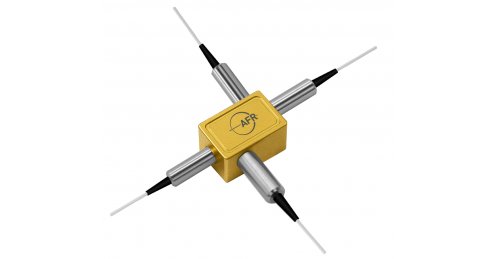

AFR 1064 nm 300 mW Polarization Maintaining Optical Isolator for Amplifiers, Fiber Lasers and Test Instrument Applications
